Running Title: In Vitro Filtration of Water and Albumin

	ABSTRACT
	INTRODUCTION
	MATERIALAS AND METHODS
	RESULTS AND DISSCUSSION
	ACKNOWLEDGEMENT
	REFERENCES

	ABSTRACT

	INTRODUCTION

Proteinuria has been considered as an independent risk factor for the progression of renal disease, which has been frequently associated with an increasing vascular permeability to circulating proteins (e.g., albumin and IgG), experimentally observed to accumulate in the cytoplasm of proximal tubules (1). Proteinuria has also been found to be associated with a decreasing glomerular filtration rate due to the loss of either size- or charge-selective properties of the glomerular barrier (1, 2). The glomerular capillary wall (GCW) consists of the glomerular basement membrane (GBM), which is situated between highly differentiated endothelial and epithelial cell layers. The three layers act together to significantly retard the flux of macromolecules, while allowing a very large water flux. However, the contribution of each layer to the overall permselective properties of the GCW has been difficult to determine (3-5). The GBM has been considered to be the only continuous barrier, which prevents blood and various circulating proteins from passing into the tubular lumen, and its thickness is approximately twice that of the basement membranes of other tissues (3). A recent modeling study based on an ideal distribution of GBM proteins assembled in an uniform three-dimensional meshwork has shown that the GBM was the principal determinant for the permselective function of the GCW (6).
In persistent proteinuria, studies using experimental models have shown that the permeability properties of the GBM are altered as a result of loss of integrity, which could be caused by either the cross-linking of the NC1 domains of type IV collagen molecules, promoted by reactive oxygen species (ROS) (7, 8), or by the extrusion of tubular cell contents, which causes inflammation and fibrosis (9-11). The ROS (e.g., superoxide, hydrogen peroxide, hydroxyl radical, and hypochlorous acid) are generated in copious amounts by the intact kidney, reflecting the relatively high rates of oxygen consumption that characterize renal metabolism (12). The ROS may be generated in the glomerular capillaries by the infiltrating blood cells, which are activated upon contact with the immune complexes (13, 14), the GBM (15), or the glomerular mesangial cells (16, 17). It has been shown that ROS play a pathobiologic role in a number of experimental models of both immune and non-immune glomerular injury (18), mediating renal damage in acute renal failure and glomerular and tubulointerstitial diseases (19).
ROS oxidize sensitive sulfhydryls on proteins, peroxidate lipids in membranes, depolymerize polysaccharides, and degrade nucleotides or nucleic acids, which may explain the increased excretion of GBM fragments in the urine in a variety of human and experimental glomerular diseases (2). When ROS are produced in the glomerular circulation, the glomerular filtration rate falls due to renal vasoconstriction and to decreases in the glomerular capillary ultrafiltration coefficient (20). It has been shown that treatment with dimethylthiouria (DMTU) reduces urinary protein and albumin excretion and increases the glomerular filtration rate in experimental animal models (21, 22).
The objective of the present study was to investigate the in vitro permeability properties of bare isolated GBM to water and macromolecules independently from glomerular hemodynamics and glomerular cells, using an ultrafiltration cell in the experimental model of glomerular injury of male Munich Wistar Frömter (MWF) rats. Based on this, we studied whether the renoprotective effects of angiotensin converting enzyme (ACE) inhibitors and ROS scavengers, which have been observed in these animals in vivo, derive from modulations of GBM hydraulic and macromolecular permeabilities.

	MATERIALS AND METHODS

Study Design
The present study consisted of 30 male MWF rats which were bred at the Mario Negri Institute for Pharmacological Research (Bergamo, Italy). The rats had continuous free access to food (standard rat chow containing 20% protein by weight) and tap water. Beginning at 10 weeks of age, 8 rats received lisinopril, an angiotensin converting enzyme (ACE) inhibitor (Zeneca Pharmaceutical, Macclesfield, UK) at a dose of 40 mg•L-1 in drinking water for an average period of 18 weeks. These rats are referred to as the “LIS” group (mean age at sacrifice = 27.15 ± 1.10 weeks). As controls, we used 7 rats that received no pharmacological treatment and that were observed until reaching an average age of 28.80 ± 2.72 weeks (group referred to as “CTR1”). Eight rats, beginning at 10 weeks of age, received dimethylthiourea, an ROS scavenger (Aldrich Chem. Co., WI, USA), at a dose of 250 mg•kg-1 body weight, dissolved in saline and administered as a single daily intraperitoneal injection, for an average period of 6 weeks (“DMTU” group; mean age at sacrifice = 17.71 ± 0.52 weeks). As the second control group (CTR2), 7 rats received no pharmacological treatment and were observed until reaching an average age of 18.62 ± 0.67 weeks.
During the observation period, systolic blood pressure (SBP) was measured once a week by tail plethysmography in awake rats (23). The rate of urinary protein excretion (UPE) was determined once a week by 24-hour urine collection in metabolic cages, and protein concentrations in urine were determined using the Coomassie blue G dye-binding assay, as previously described (24). Both the procedures for animal care and the applied experiments were conducted in accordance with the institutional guidelines outlined by national and international laws and policies (ECC Council Directive 86/609, OJL 358-1, NIH Guide for the Care and Use of Laboratory Animals).
Isolation of the GBM
Adult male MWF rats (230-420 g) were anesthetized with inactin (100 mg•kg-1, intraperitoneally), and to remove blood both kidneys were perfused in situ at 100-150 mmHg with Tris-buffered saline (0.15 M NaCl, 0.05 M Tris-hydroxymethyl aminomethane/HCl buffer, pH 7.4). Perfusion pressure was monitored using a high sensitivity pressure transducer (Battaglia Rangoni, Bologna, Italy). The kidneys blanched promptly and the perfusion was completed within 2 min.; the kidneys were then removed and weighed. All subsequent steps were performed at 4°C. The renal capsules, extrarenal vessels, and papillae were discarded, and the cortexes were separated from the medulla, weighed, and minced. The resulting homogenate was sequentially passed through standard nylon sieves (pore size of 180 and 150 µm) (Gioliani, Torino, Italy), which excluded most of the tubules, and washed in Tris-buffered saline (pH 7.4) containing 0.1% Tween over a 75µm sieve to keep glomeruli. Microscopic quantification showed that the resulting glomerular preparation contained less than 5% tubular fragments and over 95% decapsulated glomeruli.
Glomeruli were subjected to detergent lysis with N-lauryl-sarcosine (Sigma, St. Louis, Mo., USA), as previously described (25). Briefly, 20 ml•g-1 cortex N-lauryl-sarcosine (0.5% wt/vol in Tris-buffered saline) was added to the glomerular pellet and vigorously homogenized for 2 min. After standing for 10 min., the suspension was centrifuged at 2000 × g for 2 min., and the sediment was resuspended in fresh detergent (4 ml•g-1 cortex), vigorously shaked, and centrifuged at 2000×g for 2 min. The residue was washed once in Tris-buffered saline, suspended in unbuffered 0.15 M NaCl containing 0.01% (wt/vol) deoxyribonuclease-1 (1.5 ml•g-1 cortex, Type DN 25; Sigma Chemical Co., St. Louis, MO), vortexed, and allowed to stand for 30 min. at room temperature. The glomeruli were then centrifuged, suspended in 4 ml of Krebs buffer (120 mM NaCl, 4.8 mM KCl, 1 mM KH2PO4, 1.2 mM CaCl2, 0.6 mM MgSO4, 24 mM NaHCO3, 180 mg•dL-1 glucose; pH adjusted to 7.4 before use), and sonicated using an ultrasonic cell disrupter (Microson, Heat Systems Inc., NY, USA) for 1 min. to disrupt what may have remained of glomerular capsules. Membrane fragments were then used for filtration experiments. All solutions were filtrated ( 0.22-µm pore size filters; Millipore, Bedford, MA, USA) immediately before use to remove contaminants, and glassware was precoated with silicon (Sigmacote; Sigma Chemical Co., St. Louis, Mo, USA) to minimize the sticking of glomeruli or GBM.

Ultrafiltration Cell
A mini-ultrafiltration cell (Type 3, Amicon Inc., Beverly, MA, USA) was modified to include a sampling port for periodic sampling of the retentate and buffer refilling, which was connected to the N2 pressure line through a roller pump (Venous Line Pressure, Bellco, Italy) via a three-way stopcock. A Whatman 50 hardened filter paper (Whatman International Ltd., Springfield Mill, UK) and an HAWP 0.45µm Millipore polysulfone filter (Millipore, Ireland), both placed at the base of the ultrafiltration cell, were used as supporting filters. The packing pressure and the pressure inside the cell during filtration experiments were monitored using a pressure transducer (World Precision Instruments Inc., Sarasota, FL, USA), which was connected to the stopcock. The ultrafiltration cell was placed on top of a calibrated magnetic stirrer (FALC, Disa, Milan, Italy).

Filtration Experiments
The GBM suspension (150 µg in Krebs buffer) was loaded in the cell, and the pressure inside the cell was gradually increased to 1.5 atm. and maintained for 1 hour to consolidate the GBM into a homogenous layer resting on the polysulfone filter. The effect of the difference in transmembrane hydraulic pressure on the hydraulic permeability of the GMB was studied by filtering buffer solutions at the following discrete pressures: 50, 100, 200, and 300 mmHg. At each pressure level, an equilibration period of 3 min. followed by a collection period of 5 min. in pre-weighed test tubes were applied. The buffer was removed and the cell was carefully rinsed with 3 ml of retentate solution containing albumin (4 g•dL-1 in Krebs buffer) and then assembled with the magnetic stirrer. Albumin filtration was first performed at a pressure of 300 mmHg and under continuous stirring at 220 rpm for 20 min. for equilibration, followed by a 10 min. collection period. The pressure was subsequently decreased to 200, 100, and 50 mmHg, and the clearance of albumin was determined for each pressure level after a 10 min. equilibration period. The retentate was sampled at the beginning and at the end of each collection period, and the filtrate was collected throughout the 10 min. clearance in pre-weighed tubes. The flux of water and albumin solutions and the clearance and the fractional clearance of albumin were calculated. The albumin concentration was determined in both filtrate and retentate fractions by Coomassie blue G dye-binding assay (24). All filtration experiments were carried out at 25°C. At the end of each filtration experiment, the GBM-polysulfone filter was perfused with Krebs buffer at 50 mmHg for 10 min., fixed in gluteraldehyde 2.5% at the same pressure for 20 min., and finally embedded, sectioned, and stained with periodic acid-Schiff for light microscopy and morphometric studies.

Calculations
The volumetric flow rate (Qa) was estimated by collecting the filtrate for a definite period of time in calibrated test tubes and was used to calculate the volume flux (Jv) using the formula:
        (cm.sec-1) [Eq. 1]
where A is the membrane effective surface area available for filtration (= 1.54 cm2 in our experiments). The filtrate hydraulic permeability (Lp) was calculated with the formula:
         (cm•sec-1•mmHg-1) [Eq. 2]
where ΔP is the difference in transmembrane hydraulic pressure. When albumin is the only osmotically active solute (as in this study), the hydraulic permeability for albumin solutions (Lp,alb) is related to Jv,alb using the formula (26):
        (cm•sec-1•mmHg-1) [Eq. 3]
where σalb is the albumin reflection coefficient and ΔP alb is the difference in osmotic pressure for albumin (ΔP >> ΔP alb in this study). The transport of albumin through the GBM layers was assumed to occur primarily by convection rather than by diffusion (27), thus, σalb = 1 - Θalb , where Θalb is the membrane sieving coefficient for albumin, which is given by the ratio of albumin concentration in the filtrate to its concentration on the retentate side immediately adjacent to the membrane surface (i.e., C f /C m ); thus L p,alb is given by:
        (cm.sec-1.mmHg-1) [Eq. 4]
σalb was calculated from the albumin concentration (Calb) (g•dL-1) using the Landis-Pappenheimer equation given by:
        (mmHg) [Eq. 5]
The actual sieving coefficient(Θalb) was calculated from the effectively measured sieving coefficient (Θ'alb), which is the ratio of albumin concentration in the filtrate to its concentration in the retentate (i.e., Cf/Cr), using the formula corrected for concentration polarization given by (27, 28):
         [Eq. 6]
According to Eq. 6, Θalb will always be less than Θ'alb, except for the following cases, in which they will be equal: when a solute is filtered freely (i.e., Θ'alb = 1) or perfectly retained (i.e., Θ'alb = 0) or when there is no concentration polarization (i.e., B = 1).
The effect of concentration polarization is that of sedimenting albumin at the base of the cell, which forms a layer of high albumin concentration near the surface of the GBM film (i.e., Cm>Cr) (27). Under the conditions used here, we estimate that Cm typically exceeds Cr by ~20%. The concentration polarization factor (B) is calculated by:
         [Eq. 7]
where the mass transfer coefficient (Kc ), which is a function of albumin diffusivity (D), albumin kinematic viscosity, and the rotation speed of the stirrer, was found to be equal to 4.36×10^-4(cm·sec -1). Albumin diffusivity (D) was calculated on basis of the Stokes-Einstein equation for the diffusion coefficient (29), given by:
         (cm2•sec-1) [Eq. 8]
where is Boltzman's constant, T is room temperature, η is albumin dynamic viscosity and ae is albumin molecule radius. The albumin permeability coefficient (Ps) is related to D by the formula:

Ps = D/δbm (cm•sec-1) [Eq. 9]

where δbm is the basement membrane film thickness (cm). The albumin flux (Js) across the GBM film is given by (27):
        (g•cm-2•sec-1) [Eq. 10]
The local membrane Darcy permeability, which is a measure of the intrinsic hydraulic conductance of the GBM film, both in the absence of albumin (Kd ) and in the presence of albumin (Kd,alb ), is given, respectively, by (30):
        (cm2) [Eq. 11a]
        (cm2) [Eq. 11b]
where η and ηalb are the dynamic viscosity (g•cm-1•sec-1) for the buffer and albumin solutions, respectively, and Lp and Lp,alb are the actual hydraulic permeability in the absence and presence of albumin, respectively. A glass viscometer was used to measure both η and ηalb from direct estimation of their kinematic viscosities at room temperature (25°C).
Morphometric Measurements
To determine the thickness of GBM films (δbm), we applied standard morphometric techniques (31) to sections of GBM-polysulfone filter using a computer-based image analysis system comprised of an upright light microscope (Carl Zeiss, Oberkochen, Germany) equipped with a video camera (Panasonic, Matsushita Elect. Co., Osaka, Japan) connected to a computer (Macintosh IIFx, Apple Computer Inc., Cupertino, CA, USA) (32). Measurements were taken using the Image software package (NIH-Image, National Institutes of Health, USA). Briefly, serially acquired images of the GBM film sections were randomly oriented and digitally overlaid with an 8 × 9 orthogonal lines reference grid; the GBM film thickness was measured in screen pixels along the grid lines intersecting the membrane vertically and horizontally. The exact enlargement of the acquired GBM images was calculated from the direct measurement of a reference grid with a micrometer eyepiece (Nachet, Paris, France). A minimum of 500 measurements in both directions were applied for each filter. The mean thickness of GBM films (δbm) was calculated using the harmonic mean δ_h using the formula:
        (cm) [Eq. 12]
where the 8/3Π is a correction factor for variations in the sectioning angle through the GBM.

Statistical Analysis
Data analysis was carried out using the StatView® statistical package (SAS Institute Inc., NC, USA). One-way analysis of variance (ANOVA) and Scheffe’s post-hoc test of significance were applied to compare different variables among different groups. Variables are expressed as mean ± SD, unless otherwise stated. Differences among variables were considered significant at p < 0.05.

RESULTS AND DISSCUSSION

Physiologic Data. The results of the body weight, two-kidney weight, UPE, and SBP are shown in Figure 1. We did not recognize significant differences in body weight when comparing the LIS group to the CTR1 group; however, the average body weight for the DMTU animals was 36.90% (p < 0.0002) lower than that for the CTR2 group (Figure 1A). The two-kidney weight for the LIS and DMTU groups (2.45 ± 0.15 and 1.66 ± 0.24 g, respectively) was significantly lower than that for the CTR1 and CTR2 groups (2.76 ± 0.40 g, p < 0.05 and 3.06 ± 0.14 g, p < 0.0001, respectively) (Figure 1B). When the two-kidney weight was related to the rat’s body weight, these differences were no longer significant.
The LIS group had a significantly lower (p < 0.0001) UPE (53.63 ± 34.96 mg•day-1) than the CTR1 group (i.e., 367.40 ± 133.60 mg•day-1) (85.40% difference) (Figure 1C). The DMTU group also had a significantly lower (p < 0.05) UPE (30.00 ± 19.00 mg•day-1) compared to the CTR2 group (168.00 ± 80.29 mg•day-1) (82.10% difference). The significant difference between the CTR1 and the CTR2 groups resulted from the significant difference in age between the two groups (28.80 ± 2.72 and 18.62 ± 0.67 weeks, respectively), which is consistent with previous observations that the progress of renal pathology in male MWF rats exacerbates with age (33). UPE levels did not differ between the LIS group and the DMTU group.
The SBP was significantly lower for the LIS and DMTU groups (117.25 ± 6.98 and 136.92 ± 6.33 mmHg, respectively) than for the CTR1 and CTR2 groups (151.00 ± 20.14, p < 0.0001 and 165.75 ± 4.60, p < 0.02) (Figure 1D). Both lisinopril and dimethylthiouria lowered the SBP levels to normal values, which were significantly lower for the LIS group (p < 0.05) than for the DMTU group; the levels for both groups were comparable to those for healthy Wistar rats (34).
The UPE and SBP levels for the LIS group are consistent with previous observations of the beneficial antiproteinuric and antihypertensive effects of ACE inhibitors in MWF rats (32, 33). Although ACE inhibits the degradation of bradykinin and fosters its hypotensive action, the principal pharmacological and clinical effects of ACE inhibitors were assumed to arise from the suppression of the synthesis of angiotensin II (35) and from the reduction of ROS (36). The antihypertensive effect of ACE inhibitors was accompanied by decreases in both oxidative stress and vascular hypertrophy, which implies that these processes are redox-sensitive in stroke-prone spontaneously hypertensive rats (37). Moreover, ACE inhibitors have been shown to inhibit vascular remodeling and to reduce ROS in these rats by reducing NAD(P)H oxidase and upregulating Cu/Zn superoxide dismutase (36).
The UPE for the DMTU group is also consistent with observations of treatment with the ROS scavenger DMTU, which has been shown to significantly attenuate anti-GBM antibody-induced proteinuria (2). DMTU treatment has also been shown to reduce proteinuria in various models of glomerular injury (22, 38). The protective effects of DMTU in neutrophil-dependent injuries has been shown to derive from scavenging either the hydroxyl radical or hypochlorous acid (2, 8, 39).

GBM and Albumin Physical Characteristics. No significant differences were observed among the different groups for GBM film thickness (δbm), implying that the consolidation process resulted in homogenous and reproducible GBM layers for all study groups (Table 1). The average σbm (5.57 ± 0.45 × 10^-4 cm) was used for subsequent calculations. Albumin diffusivity (D) was estimated using the Stokes-Einstein relation [Eq. 8] for albumin solutions (4 g•dL-1) at 25°C, which was calculated as 5.76 ± 0.11 × 10^-7(cm2•sec-1). Based on the average values for D and δbm, an average Ps value of 10.81 ± 0.87 × 10^-4 (cm•sec-1) was calculated for albumin solutions [Eq. 9].
Solvent and Solute Fluxes. Figures 2A and B show the solvent flux in the absence and in the presence of albumin (Jv and Jv,alb, respectively) for all groups of experimental animals. As ΔP increased, Jv and Jv,alb increased in an identical linear fashion; nonetheless, the Jv values were approximately 2.5 to 5 times higher than the Jv,alb values at the same ΔP. For the LIS group, Jv was significantly higher (p < 0.02) compared to that of the CTR1 group at all ΔP; however, the Jv values for the DMTU group did not significantly differ when compared to those of the CTR2 group (Figure 2A). The Jv,alb values for the LIS group at ΔP 50, 100, and 200 were significantly higher (p < 0.05) than those for the CTR1 group but the Jv,alb values for the DMTU group at all ΔP were not significantly different from those for the CTR2 group (Figure 2B). Albumin flux (Js) and albumin fractional clearance (Θalb) maintained nearly stable with increasing ΔP within the same group and without any significant differences among groups (Figures 2C and D).
The Θalb in vitro (14.56 ± 0.04) was much higher than that in vivo for the intact glomerulus by micropuncture techniques in the experimental rat model (i.e., ~3 × 10-4) (40). This huge difference was assumed to have derived from the absence of endothelial and epithelial layers in GBM preparations (41); moreover, loss of GBM proteins and modulation of the GBM-protein structure are also considered critical for the high degree of restriction of plasma proteins across the intact glomerulus (6). Although albumin is negatively charged at a pH 7.4, it showed no significant changes in behavior when filtered at a pH of 5.7 (34); thus size rather than charge may be the principal determinant of filtration for this large protein.
An ideal ultrafiltration membrane would be expected to show linear increases in Jv,alb and Js, whereas Θalb should remain constant with increasing ΔP, provided that Js is dominated by convection [as explained below after Eq. 15]. In our study, the behavior of the basement membrane film deviated from this ideal situation for Js and Θalb (Figure 2C and D), which has been previously explained as a consequence of the compression of GBM films under the initial packing pressure (27, 42).

Effect of Hydrostatic Pressure and Albumin Concentration on Hydraulic Permeability. The hydraulic permeability in the absence of albumin (Lp) decreased linearly with increasing ΔP for all study groups (Figure 3A). The Lp values for the LIS group were significantly higher (p < 0.02) than those for the CTR1 group at all ΔP; however, the Lp values for the DMTU group were not significantly different from those for the CTR2 group. The hydraulic permeability of albumin solutions (Lp,alb) also decreased by increasing ΔP for all groups (Figure 3B), yet in a curvilinear fashion, reaching lower values in comparison with Lp. The actual hydraulic permeability values (L'p,alb, Table 2), which were calculated using Θ'alb = Cf/Cr instead of Θalb, given by Eq. 6, were lower than the Lp,alb values yet showed the same inverse relationship with ΔP. The Lp,alb and L'p,alb values at 100, 200 and 300 mmHg were significantly lower (p < 0.05) than those at 50 mmHg for all study groups (Table 2), with the values at 200 and 300 mmHg being significantly lower (p < 0.05) than those at 100 mmHg. The Lp,alb values for the LIS group were not significantly different from those for the CTR1 group at all ΔP; however, the Lp,alb values for the DMTU group were significantly higher (p < 0.05) than those for the CTR2 group at all ΔP.
Previous results of in vivo studies have shown that the administration of ACE inhibitors have renoprotective effects; decreasing proteinuria and dextran clearance and increasing the hydraulic permeability in the MWF rat model, yet the exact mechanism(s) of these favorable effects is still unclear (33). DMTU treatment have been shown also to be accompanied by reduced albumin clearance and increased hydraulic permeability mediated by a DMTU-induced increase in renal glutathione (22).
According to Eq. 4, if the plot relating Jv,alb and ΔP is linear and passes through the origin, then the Lp,alb calculated at each ΔP will be identical. An example of this is the case of dialysis membranes when the "distending pressure", which is equal to the plasma oncotic pressure, is subtracted from the applied pressure (43). However, when this relationship is curvilinear or does not pass through the origin, as was the case in the present study, Lp,alb will be different at each pressure level (Figure 2B, 3B). The decrease in Lp,alb as ΔP increased has been attributed to the compressibility of the GBM at high and physiologic pressures (42). The ultrafiltration coefficient has also been shown to follow the same profile of dependence on ΔP in many in vivo glomerular micropuncture studies in association with a wide range of experimental and pharmacological maneuvers (33, 44-46).
In this study, skeletons of GBM were consolidated under high pressure, so that many layers of GBM comprised the filtration system. If we assume that the GBM thickness is not altered by the consolidation process, then the actual number of GBM layers calculated on the basis of the mean thickness of the GBM film (5.57 ± 0.45 × 10^-4 cm) and the mean thickness of the GBM from comparable rats (230 × 10^-7 cm) (32) is approximately 25. The GBM layers can be considered as resistors in series (27); thus the hydraulic permeability for a single GBM layer is approximately 25 times the measured Lp,alb value in the present experiments. To correct Lp,alb experimental values for the difference between room temperature and body temperature, we introduced the ratio of the viscosity of water at 25°C to that at 37°C (i.e., 1.3), thus we estimate that

Lp,alb = 25 × 1.3 × 1.95 ×10^-6 = 0.63 × 10^-4 (cm•sec-1•mmHg-1) [Eq. 13]

for one GBM layer at ΔP = 50 mmHg, 4 g•dL-1 albumin concentration, and 37°C of CTR1 rats, which is approximately 2 times higher than typical micropuncture estimates of Lp,alb in the intact rat glomerulus (47). Other research groups have estimated Lp,alb values that were five times higher than micropuncture estimates (27).
During the filtration process, the movement of albumin across the semi-permeable GBM film results from diffusion, and from convection, where momentum is transferred from the solvent to albumin molecules (42). The relative magnitude of these two processes is expressed by the transmembrane Péclet number (Pe), which is given by
        [Eq. 14]
where Jv,alb is the solvent volume flux (Eq. 3), Θalb is the albumin reflection coefficient, and Ps is the albumin permeability coefficient (Eq. 9). Pe values were calculated to have an average value of 0.02 for all GBM membranes at all ΔP. Thus, albumin flux (Js, given by Eq. 10) as a result of the two concurrent mechanisms convection and diffusion is given by (26):
       (g•cm-2•sec-1) [Eq. 15]
where Cm is the albumin concentration in the overstanding solution and Cf is the albumin concentration in the filtrate, noting that the difference of albumin concentration on both sides of the GBM film (i.e., ΔC = Cm - Cf) tended to increase by increasing ΔP. The ΔC values at ΔP 200 and 300 mmHg were significantly higher than those at 50 and 100 mmHg for all study groups (Table 1).
When albumin is filtered through a partially obstructive membrane, the rejected macromolecules tend to accumulate at the membrane surface, which is known as “concentration polarization” (B, given by Eq. 7) (42). The effects of B become more obvious as the filtration pressure is increased (Table 2), since the increased buffer velocity towards the membrane tends to sweep more macromolecules to the membrane surface. This effect has two consequences, the first is to increase the local albumin concentration (Cm), which in turn increases the osmotic potential across the membrane (Πalb) opposing the applied hydrostatic pressure (ΔP) reducing the solvent flux (Jv,alb, Eq. 4). Thus by increasing filtration ΔP, Jv,alb tends to fall below the values observed when buffer is filtered alone, Jv (Figure 2A and B). The second effect is to increase the solute flux across the membrane (Js), since it is determined by the albumin concentration at the membrane surface (Cm) rather than that in the bulk solution (Cr) (Figure 2C).
Darcy Permeability. The Darcy permeability is a specific measure of fluid permeability, which is independent from the GBM thickness and fluid viscosity. The Darcy permeability values in the absence and presence of albumin (Kd and Kd,alb, respectively) are summarized in Table 3. Both Kd and Kd,alb values at 100, 200 and 300 mmHg were significantly lower (p < 0.05) than those at 50 mmHg for all study groups. The Kd values for the LIS group were also significantly higher (p < 0.05) than those for the CTR1 group at all ΔP, whereas the Kd values for the DMTU group were comparable to those for the CTR2 group (Figure 3C). Figure 3D shows the rapid progressive decline of Kd,alb by increasing ΔP in the presence of albumin for all study groups in comparison with Kd. The Kd,alb values for the LIS group were not significantly different from those for the CTR1 group at all ΔP yet, the Kd,alb values for the DMTU group were significantly higher (p < 0.05) than those for the CTR2 group only at 50 and 100 mmHg.
Conclusions. We studied the permeability properties of bare isolated GBM to water and albumin in the MWF experimental rat model, which develops spontaneously proteinuria by age. Two parallel pharmacological regimens (i.e., ACE inhibitors and ROS scavengers) were used to treat proteinuria in these animals. Ultrafiltration experiments showed that the GBM exhibits high water permeability and restricts the passage of macromolecules such as albumin, although to a much lesser extent than the intact glomerulus. We attributed these differences to the absence of endothelial and epithelial layers in GBM preparations; and possibly to the loss or modulation of the GBM-protein structure, which may occur during the GBM isolation procedure.
It has been shown that increased intra-renal oxidant stress, owing to an overproduction of ROS and dysregulated tubular antioxidant enzymes, can induce overexpression of fibrogenic cytokines and chemoattractants, as well as increased transcription and synthesis of extracellular matrix proteins, leading to tubular loss and fibrogenesis (19). Both animals treated with ACE inhibitors and ROS scavengers had higher hydraulic and Darcy permeability, either in the absence or presence of albumin, in comparison with control animals; suggesting their direct effect on GBM structure. A possible explanation of these favorable effects maybe attributed to maintaining the GBM matrix structure by reducing its integral proteins degradation (i.e., entactin and laminin) and cross-linking (i.e., type IV collagen) (8). This hypothesis is in line with previous studies showing that treatment with ACE inhibitors, which are also ROS scavengers, was accompanied by decreases of both oxidative stress and vascular hypertrophy, inhibition of vascular remodeling, and reduction of ROS; due to the reduction of NAD(P)H oxidase and the upregulation of Cu/Zn superoxide dismutase (36, 37). Filtration experiments showed also that size, rather than charge, maybe the principal determinant for filtration of macromolecules across the GBM and that the GBM is the principle barrier responsible for permeability properties of the GCW.

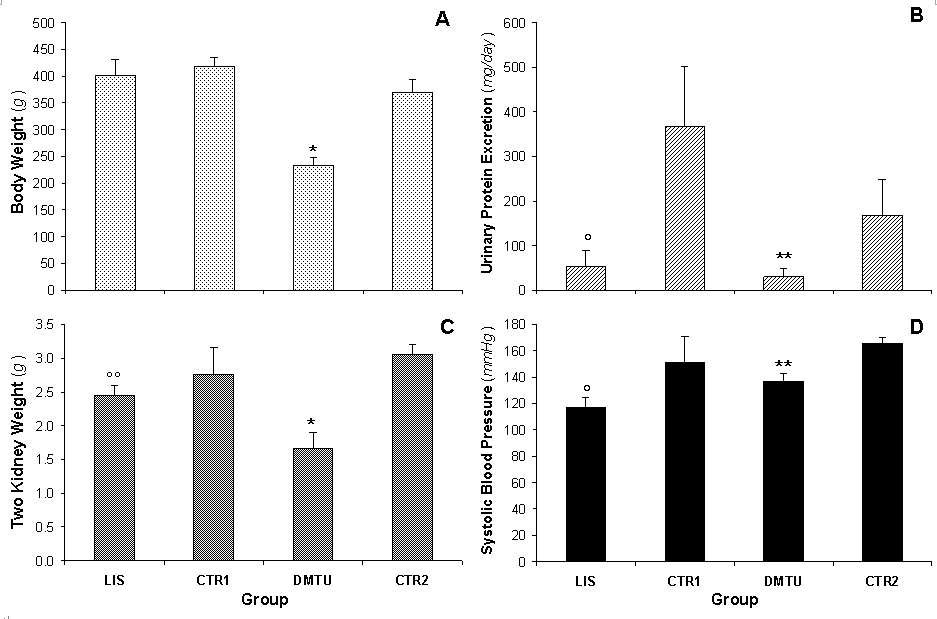

View larger version : [in a new window] Figure 1. Body and two kidney weight, urinary protein excretion in 24 hours and systolic blood pressure for lisinopril treated rats (LIS, n = 8), its negative control group (CTR1, n = 7), dimethylthiouria treated rats (DMTU, n = 8), and its negative control group (CTR2, n = 7). Data are presented as mean ± SD. *p < 0.0001 vs. CTR2, **p < 0.05 vs. CTR2, °p < 0.0001 vs. CTR1, and °°p < 0.05 vs. CTR1.

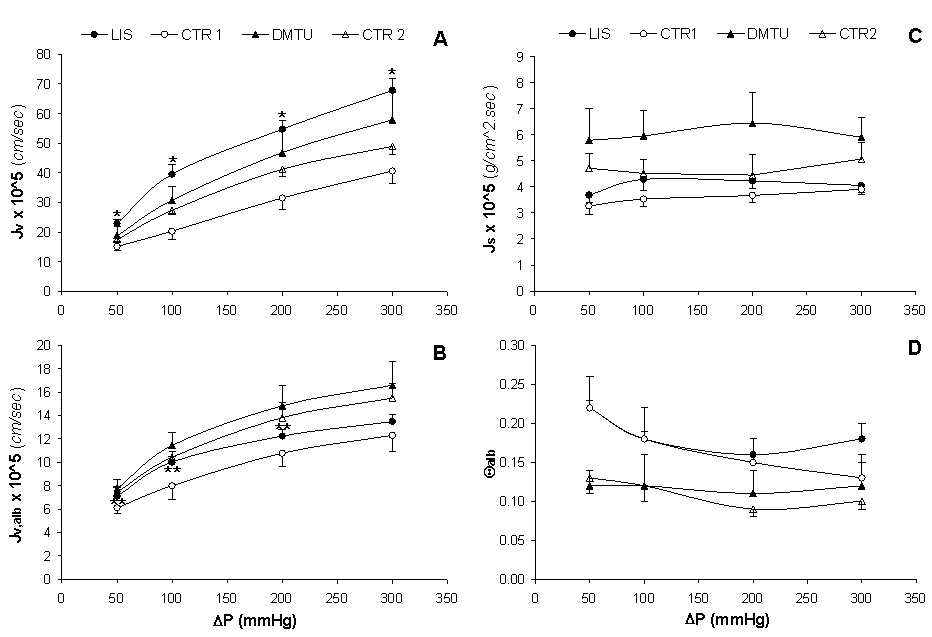

View larger version : [in a new window] Figure 2. Tracks of change of the volumetric solvent flux in the absence of albumin (Jv) and presence of albumin (Jv,alb) at a concentration of 4g.dL-1, albumin flux (Js), and albumin fractional clearance (Θalb) with the hydrostatic pressure difference (ΔP) for lisinopril treated rats (LIS, n = 8), its negative control group (CTR1, n = 7), dimethylthiouria treated rats (DMTU, n = 8), and its negative control group (CTR2, n = 7). Data are presented as mean ±SD. *p < 0.02 vs. CTR1 and **p < 0.05 vs. CTR1.

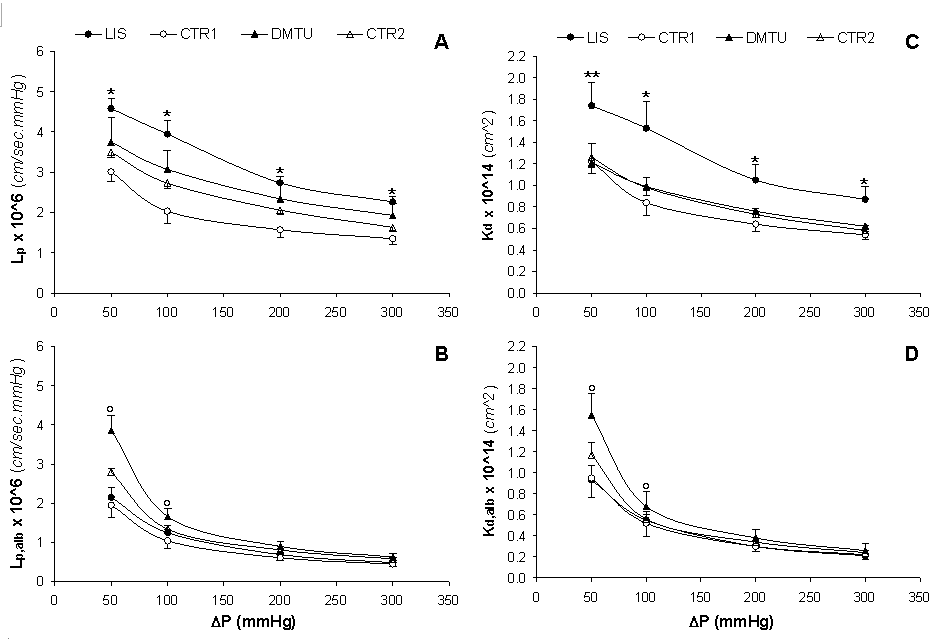

View larger version : [in a new window] Figure 3. Changes in actual hydraulic and local Darcy permeabilities in absence of albumin (Lp and Kd, respectively) and presence of albumin (Lp,alb and Kd,alb, respectively) associated with increment changes in the hydrostatic pressure difference (ΔP) for lisinopril treated rats (LIS, n = 8), its negative control group (CTR1, n = 7), dimethylthiouria treated rats (DMTU, n = 8), and its negative control group (CTR2, n = 7). Data are presented as mean ± SD. *p < 0.02 vs. CTR1, **p < 0.05 vs. CTR1, and °p < 0.05 vs. CTR2.

	ACKNOWLEDGEMENT

We would like to thank Dr. Daniela Macconi, Dr. Marina Ghilardi, and Dr. Maria-Enrica Bonassi (Mario Negri Institute for Pharmacological Research, Bergamo, Italy) for the assistance provided during the experimental part of this study. We are also indebted to Mr. Mark Kanieff for professional editorial assistance.

	REFERENCES

• 1. Keane W F (2000) Proteinuria: Its clinical importance and role in progressive renal disease. Am J Kidney Dis 35(4):S97-S105
• 2. Shah S V (1989) Role of reactive oxygen metabolites in experimental glomerular disease. Kidney Int 35:1093-1106
• 3. Farquhar M G, Wissig S L, Palade G E (1999) Glomerular permeability. I. Ferritin transfer across the normal glomerular capillary wall. J Am Soc Nephrol 10:2645-2662
• 4. Greive K A, Nikolic-Paterson D J, Guimaraes M A M, et al. (2001) Glomerular permselectivity factors are not responsible for the increase in fractional clearance of albumin in rat glomerulonephrities. Am J Pathol 159:1159-1170
• 5. Deen W M, Lazzara M J, Myers B D (2001) Structural determinanta of glomerular permeability. Am J Physiol Renal Physiol 281:F579-F596
• 6. Mohamed E I, De Lorenzo A (2002) Modeling combined transport of water and test macromolecules across the glomerular capillary barrier: Dynamics of the permselectivity. Eur Biophys J 31(3):163-171
• 7. Kerjaschki D (1996) Molecular pathogenesis of experimental membraneous glomerulonephritis (Heymann nephritis) Pathologe 17(4):262-268
• 8. Riedle B, Kerjaschki D (1997) Reactive oxygen species cause direct damage of Engelbreth-Holm-Swarm matrix. Am J Pathol 151(1):215-31
• 9. Eddy A A (1989) Interstitial nephrosis induced by protein-overload proteinuria. Am J Pathol 135:719-733
• 10. Zoja C, Liu X H, Abbate M, et al. (1998) Angiotensin II blockade limits tubular protein overeabsorption and the consequent upregulation of endothelin 1 gene in experimental membranous nephropathy. Exp Nephrol 6:121-131
• 11. Abbate M, Zoja C, Carla D, et al. (1998) In progressive nephropathies overload of tubular cells with filtered proteins translates glomerular permeability dysfunction into cellular signals of interstitial inflammation. J Am Soc Nephrol 9:1213-1224
• 12. Guidet B R, Shah S V (1989) In vivo generation of hydrogen peroxide by rat kidney cortex and glomeruli. Am J Physiol 256 (1 Pt 2):F158-F164
• 13. Johnston RB Jr, Lehmeyer JE (1976) Elaboration of toxic oxygen by-products by neutrophils in a model of immune complex disease. J Clin Invest. 57(4):836-841
• 14. Worthen GS, Seccombe JF, Clay KL, et al. (1988) The priming of neutrophils by lipopolysaccharide for production of intracellular platelet-activating factor. Potential role in mediation of enhanced superoxide secretion. J Immunol. 140(10):3553-3559
• 15. Davies M, Coles G A, Harber M H (1984) Effect of glomerular basement membrane on the initiation of chemiluminescence and lysosomal enzyme release in human polymorphonuclear leucocytes: an in vitro model of glomerular disease. Immunology 52:151-159
• 16. Baud L, Ardaillou R (1986) Reactive oxygen species: production and role in the kidney. Am J Physiol 251:F765-F766
• 17. Diamond JR (1992) The role of reactive species in animal models of glomerular disease. Am J Kidney Dis 19(3):292-300
• 18. Klahr S (1997) Oxygen radicals and renal diseases. Miner Electrolyte Metab 23(3-6):140-143
• 19. Ricardo SD, Diamond JR (1998) The role of macrophages and reactive oxygen species in experimental hydronephrosis. Semin Nephrol 18(6):612-621
• 20. Yoshioka T, Ichikawa I (1989) Glomerular dysfunction induced by polymorphonuclear leukocyte-derived reactive oxygen species. Am J Physiol 257(1 Pt 2): F53-F59
• 21. Langleben D, Fox RB, Jones RC, et al. (1989) Effects of dimethylthiourea on chronic hypoxia-induced pulmonary arterial remodelling and ventricular hypertrophy in rats. Clin Invest Med 12(4):235-240
• 22. Milner L S, Wei S H, Houser M T (1991) Amelioration of glomerular injury in doxorubicin hydrochloride nephrosis by dimethylthiouria. J Lab Clin Med 118:427-434
• 23. Pfeffer J M, Pfeffer M A, E. D. Forhlich. (1971) Validity of an indirect tail-cuff method for determining systolic arterial pressure in unanesthetized normotensive and spontaneously hypertensive rats. J Lab Clin Med 78(6):957-962
• 24. Read S M, Northcote D H (1981) Minimization of variation in the response to different proteins of the Coomassie blue G dye-binding assay for protein. Anal Biochem 116(1):53-64
• 25. Ligler F S, Robinson G B (1977) A new method for the isolation of renal basement membranes. Biochim Biophys Acta 468:327-340
• 26. Curry F E (1984) Mechanics and thermodynamics of transcapillary exchange. In: Renken E M, Michel C C (eds) Hand Book of Physiology, Section 2, Vol. IV, Part 1: Cardiovascular system. Am Physiol Soc, Bethesda, pp 309-374
• 27. Daniels B S, Hauser E B, Deen W M (1992) Glomerular basement membrane: in vitro studies of water and protein permeability. Am J Physiol Renal Physiol 262:F919-F926
• 28. Cotter T G, Robinson G B (1978) Effects of concentration-polarization on the filtration of proteins through filters constructed from isolated renal basement membrane. Clin Sci Mol Med 55:113-119
• 29. Deen W M, Satvat B, Jamieson J M (1980) Theoretical model for glomerular filtration of charged solutes. Am J Physiol 241:F126-F139.
• 30. Drumond M C, Deen W M (1994) Structural determinants of glomerular hydraulic permeability. Am J Physiol 266:F1-F12.
• 31. Hirose K, Osterby R, Nozawa M, et al. (1982) Development of glomerular lesions in experimental long-term diabetes in the rat. Kidney Int 21:889-895.
• 32. Iordache B E, Imberti O, Foglieni C, et al. (1994) Effects of angiotensin converting enzyme inhibition on glomerular capillary wall ultrastructure in MWF/Ztm rats. J Am Soc Neph 5:1378-1384.
• 33. Remuzzi A, Puntorieri S, Battaglia C, et al. (1990) Angiotensin converting enzyme inhibition ameliorates glomerular filtration of macromolecules and water and lessens glomerular injury. J Clin Invest 85:541-549.
• 34. Macconi D, Ghilardi M, Bonassi M-E, et al. (2000) Effect of angiotensin-converting enzyme inhibition on glomerular basement membrane permeability and distribution of Zonula Occludens-1 in MWF rats. J Am Soc Nephrol 11:477-489.
• 35. Garrison J C, Peach M J (1991). In: Goodman & Gilman's The pharmacological basis of therapeutics. 8th ed, Gilman A G, Rall T W, Nies A S, Taylo P (eds). Pergamon Press, New York. pp 749-763.
• 36. Tanaka M, Umemoto S, Kawahara S, et al. (2005) Angiotensin II type 1 receptor antagonist and angiotensin-converting enzyme inhibitor altered the activation of Cu/Zn-containing superoxide dismutase in the heart of stroke-prone spotaneously hypertensive rats. Hypertens 28:67-77.
• 37. Chen X, Touyz RM, Park JP, et al. (2001) Antioxidant effects of vitamins C and E are associated with altered activation of vascular NADPH oxidase and superoxide dismutase in stroke-prone SHR. Hypertens 38:606-611.
• 38. Sabbatini M, Sansone G, Uccello F, et al. (1994) Functional versus structural changes in the pathophysiology of acute ischemic renal failure in aging rats. Kidney Int 45:1355-1361.
• 39. Wasil M, Halliwell B, Grootveld M, et al. (1987) The specificity of thiourea, dimethylthiourea and dimethyl sulphoxide as scavengers of hydroxyl radicals. Their protection of alpha 1-antiproteinase against inactivation by hypochlorous acid. Biochem J 243:867-870.
• 40. Galaske R G, Baldamus C A, Stolte H (1978) Plasma protein handling in the rat kidney: Micropuncture experiments in the acute heterologous phase of anti-GBM-nephritis. Pflügers Arch 375:269-277.
• 41. Daniels B S (1994) Increased albumin permeability in vitro following alterations of glomerular charge is mediated by the cells of the filtration barrier. J Lab Clin Med 124:224-230.
• 42. Robinson G B, Walton H A (1987) Ultrafiltration through basement membrane. In: Basement membranes in health and disease. Price R G, Hudson B G (eds) New York: Academic, pp 141-161.
• 43. Ofsthun NJ, Colton CK (1987) Visual evidence of concentration polarization in cross-flow membrane plasmapheresis. ASAIO Trans 33(3):510-517.
• 44. Tucker B J, Mundy C A, Maciejewski A R, et al. (1986) Changes in glomerular hemodynamic response to angiotensin II after subacute renal denervation in rats. J Clin Invest 78:680-688.
• 45. Zatz R, Dunn B R, Meyer T W, et al. (1986) Prevention of diabetic glomerulopathy by pharmacological amelioration of glomerular capillary hypertension. J Clin Invest 77:1925-1930.
• 46. Gabbai F B, Wilson C B, Blantz R C (1988) Role of angiotensin II in experimental membranous nephropathy. Am J Physiol Renal Physiol 254:F500-F506.
• 47. Deen W M, Troy J L, Robertson C R, et al. (1973) Dynamics of glomerular ultrafiltration in the rat. IV. Determination of the ultrafiltration coefficient. J Clin Invest 52:1500-1509.
