Cranbrook Kingswood Upper School, 550 Lone Pine Rd, Bloomfield Hills, MI 48304, USA

Corresponding Author: Estella Gan, Cranbrook Kingswood Upper School, 550 Lone Pine Rd, Bloomfield Hills, MI 48304, USA. E-mail: estella88gan@gmail.com.

Running title: NR AND NMN SUPPLEMENTS FOR AGING-RELATED DISEASES

	ABSTRACT
	INTRODUCTION
	PRECLINICAL STUDIES OF NR AND NMN IN AGING-RELATED DISEASES
	CLINICAL STUDIES OF NMN AND NR AGING-RELATED DISEASES
	CONCLUSION
	ACKNOWLEDGEMENTS
	CONFLICT OF INTERESTS
	ABBREVIATIONS
	REFERENCES

	ABSTRACT

Nicotinamide adenine dinucleotide (NAD⁺) plays fundamental roles in human life and health as an essential cofactor and substrate for a great number of vital biological processes. A growing body of evidence has demonstrated that the development of many age-related degenerative diseases, including dementia, heart failure, and diabetes, are linked with an age-dependent depletion in cellular NAD⁺ levels. Preclinical studies have shown that the restoration of NAD⁺ levels through NAD⁺ precursors, nicotinamide riboside (NR) and nicotinamide mononucleotide (NMN) supplementation, reduces the risk of heart failure, ameliorates the manifestations of Alzheimer's and Parkinson's, and improves insulin-sensitivity in type 2 diabetes. In recent years, multiple clinical studies have indicated that NR and NMN supplements are well tolerated and effectively stimulate NAD⁺ metabolism in healthy subjects. Further efficacy studies of NR and NMN supplements in patients with degenerative diseases are under clinical trial. This article reviews the recent preclinical and clinical progress of NR and NMN supplements as potential therapies to treat aging-related diseases with a focus on cardiovascular disease, neurodegenerative disorders, and diabetes studies.

	INTRODUCTION

   Nicotinamide adenine dinucleotide (NAD⁺), a crucial cofactor present in all living cells, plays fundamental roles in many important biological processes including ATP production, DNA repair, mitochondrial function, inflammatory response in immune cells, etc. (1-3). Recently, growing evidence has indicated an age-dependent decline of NAD⁺ across multiple species including worms, rodents, and human tissues. Although the precise mechanism of the NAD⁺ age-dependent decline remains unknown, the possible explanations include increased NAD⁺ consumption and/or decreased NAD⁺ synthesis (4-6). In addition, the decrease of NAD⁺ levels have been demonstrated to be associated with many aging-related diseases such as skin disease, heart disease, neurodegenerative disorders, diabetes, etc. (3). In line with these findings, NAD⁺ replenishment through administration of NAD⁺ precursors have been reported to display beneficial effects counteracting aging and aging-related diseases (7-9).

   Four NAD⁺ precursors have been extensively studied, including nicotinamide (NAM), nicotinic acid (NA), nicotinamide riboside (NR), and nicotinamide mononucleotide (NMN). In contrast to NR and NMN, NAM and NA exhibit potential risks when used as supplementation to raise NAD⁺ levels. For instance, NAM inhibits poly (ADP-ribose) polymerases (PARPs), an important enzyme in DNA repair for genomic integrity and programmed cell death (10), and long-term consumption of NA supplements increases the risk of type 2 diabetes (11). However, NR and NMN are much safer supplements and have been intensively studied in aging and aging-related diseases (Figure 1). NR is present in natural products such as cow milk and exhibits great bioavailability (12). NR can be directly converted into NMN intracellularly by nicotinamide riboside kinases 1 and 2 (NRK1 and NRK2) and is subsequently catalyzed to NAD⁺ by nicotinamide-nucleotide adenylyltransferase (NMNAT) (13) (Figure 1). In contrast to NR, which can readily cross cell membranes, NMN has to first be extracellularly converted to NR by a cell surface receptor named CD73 (14). Only then can the NAD⁺ precursor molecule enters the cell via equilibrative nucleoside transporters (ENTs), which initiate a cascade of reactions to ultimately elevate intracellular NAD⁺ levels (15).

   In preclinical studies, both NMN and NR are orally bioavailable and effectively increase endogenous NAD⁺ levels with beneficial or therapeutic effects (16). More recently, a number of clinical trials have been conducted to evaluate effects of NR and NMN on age-related diseases. This article reviews the recent advances in the therapeutical potentials of NR and NMN supplements for aging-related diseases with a focus on cardiovascular disease, neurodegenerative disorders, and diabetes in both preclinical and clinical studies.

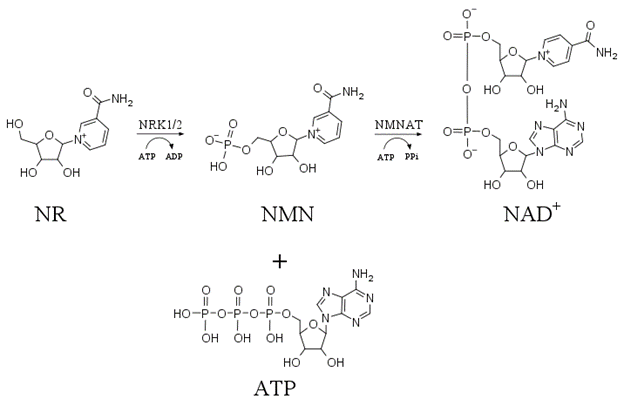

View larger version : [in a new window] NAD+ Biosynthesis from its precursors. NR is phosphorylated to MNM by Nicotinamide Riboside Kinase ½ (NRK1/2), and subsequently, NMN reacts with ATP to produce NAD+ by Nicotinamide mononucleotide adenylyltransferase (NMNAT).

	PRECLINICAL STUDIES OF NR AND NMN IN AGING-RELATED DISEASES

   The efficacies of NAD⁺ precursors NR and NMN have been studied in multiple preclinical animal models for aging-related diseases, such as cardiovascular diseases, neurodegenerative disorders, diabetes, etc.

   NMN and NR in Cardiovascular diseases

   Cardiovascular diseases are the leading killers globally, resulting in 17.9 million deaths each year as estimated by the World Health Organization in 2022 (17). Raising NAD⁺ by NMN and NR supplementation has been studied in many preclinical models. Yamamoto et al reported that administration of NMN supplementation at 500 mg/kg to mice, either once 30 minutes before the onset of ischemia or every 6 hours during the reperfusion for 24 hours, significantly decreased the heart infarct sizes by 44% and 29%, respectively, compared to the saline control (18). This result suggests that the exogenous administration of NMN greatly protects the heart from ischemia and reperfusion (I/R). Consistent with Yamamoto’s report, Nie and colleagues in 2021 first assembled NR with antioxidant reagent resveratrol in nanocrystal microspheres (NR/RESms) and then orally delivered NR/RESms into mice (19). Their study indicated that NR/RESms significantly elevated NAD⁺ levels in serum and attenuated myocardial infarction in a cardiac I/R injury mouse model (19). A similar result was observed in another study by Hosseini and colleagues when they administered NMN at 100 mg/kg/day with antioxidant reagent-Melatonin intraperitoneally in rats (20). The results showed that the combined therapy had significant cardioprotective effects in aged rats by reducing mitochondrial reactive oxygen species and oxidative status, as well as improvement of mitochondrial membrane potential (20).

   Heart failure has been observed to be associated with mitochondrial dysfunction, and it has been well recognized that NAD⁺ plays a critical role in mitochondrial function (21). Zhang and colleagues intraperitoneally injected NMN at 500 mg/kg/day for 5 days in mice with cardiac failure (21). They showed that NMN protects against pressure overload-induced heart failure through the preservation of mitochondrial ultrastructure, reduction of reactive oxygen species, and prevention of heart cell death (21). In parallel, Diguet et al studied NR administration through food in mice with dilated cardiomyopathy, showing that NR supplementation attenuates the development of mouse heart failure by stabilizing myocardial NAD⁺ levels (22). Interestingly, a recent new study argued that high dosages of NR supplement may worsen the mitochondrial damage in the heart, warning that caution should be taken when administration of high doses of NR, particularly for the mitochondrial dysfunction-causing cardiomyopathy (23).

   Neurodegenerative disorders

   There were approximately 57.4 million people with dementia worldwide in 2019, and the number is predicted to increase to 152.8 million by 2050, causing large economic burden and healthcare challenges (24). Numerous preclinical studies have been done on the effect of raising NAD⁺ through NR and NMN supplementation on such neurodegenerative disorders.

   Alzheimer's disease (AD) is the most common type of dementia, and amyloid β-peptide (Aβ) plaques and tau neurofibrillary tangles are the neuropathological hallmarks of AD (25). Wang et al reported that treatment with NMN (500 mg/kg) eliminated the accumulation of ROS, prevented the Aβ1–42 oligomer-induced neuronal death, and ameliorated learning and memory in rat AD model (31). In another study, the administration of NMN significantly decreased amyloid plaque burden, synaptic loss, and inflammatory responses, all of which are closely associated with AD (32-33). In addition, the effect of NR on AD has also been observed in preclinical studies. Hou et al treated AD mice with NR dissolved in drinking water (12 mM) for 6 months and they observed that NR supplement significantly normalized neuroinflammation, synaptic transmission, phosphorylated Tau, and DNA damage as well as improved learning and memory and motor function (34). Taken together, all the studies collectively indicate that NMN and NR supplementation hold great potential to treat AD.

   Parkinson’s Disease (PD), the most common neurodegenerative movement disorder, is characterized by the loss of dopaminergic neurons in the substantia nigra and by the accumulation of misfolded α-synuclein (35). In the PD model of Drosophila, NR treatment (500 μM for 30 days) significantly prevented dopaminergic neuronal loss (37). PC12 cells are a cell line derived from an induced, transplantable rat pheochromocytoma and are commonly used as a cellular model for PD. NMN treatment (0.1 or 1 mM for 24 hours) significantly improved survival rates in PC12 cells treated with the toxic compound rotenone, reducing rotenone-induced cell apoptosis (36).

   Diabetes

   According to the World Health Organization, diabetes was the direct cause of 1.5 million deaths in 2019 worldwide, and the number of people with the disease is only projected to increase to 643 million by 2030 and 783 million by 2045 (22). Aging has been identified as one of the most significant risk factors for the development of type 2 diabetes (T2D) (23). Patients are diagnosed as diabetic when they are hyperglycemic, with elevated fasting blood glucose of greater than 125 mg/dL (24). Yoshino et al reported that a single dose (500 mg/kg body weight/day) of NMN administrated intraperitoneally normalized the impaired glucose tolerance in aged, naturally occurring diabetic male mice (26). As female mice with naturally developed T2D were more difficult to obtain, the study used aged female mice which had been given a high fat diet (HFD) for 7 weeks to induce diabetic conditions (26). These aged, diabetic female mice received 11 consecutive injections of NMN. Experimental results showed that these injections of NMN were able to completely normalize even severely impaired glucose tolerance, suggesting the potential for NMN to be effective in human T2D patients (26).

   T2D is known to be caused in part by the inability of insulin-sensitive tissues to respond accurately to insulin, and long-term administration of NMN was studied in a 12-month long mouse model to determine NMN’s ability to ameliorate age-associated decrease in insulin sensitivity (27). Blood glucose levels measured in T2D mice treated with various NMN concentrations (0 100, and 300 mg/kg/day) showed that NMN-administration significantly improved insulin sensitivity in T2D mice (27). These results indicate that NMN taken over a long duration of time could serve as a remedy for T2D patients.

   Furthermore, Trammell et al studied the effects of NR supplementation on the fasting and non-fasting glucose levels in male mice with T2D (28). They found that NR supplementation dramatically decreased fasting glucose levels from 345 mg/dl to 194 mg/dl in the T2D mice and improved glucose tolerance, indicating that NR has notable effects on the metabolism of T2D mice (28).

   In summary, preclinical studies have demonstrated that both NMN and NR supplements greatly help improve the conditions resulting from various aging-related diseases such as cardiovascular conditions, neurodegenerative disorders and diabetes.

	CLINICAL STUDIES OF NMN AND NR AGING-RELATED DISEASES

   Preclinical results strongly support the clinical potential of NR and NMN in age-related diseases. In recent years, the safety and bioavailability of NMN and NR have been examined in multiple clinical studies. Irie et al conducted a non-blinded clinical trial to investigate the safety of NMN administration in 10 healthy men who orally received a single administration of NMN at 100, 250 and 500 mg (29). Clinical parameters were then assessed at five hours after NMN administration, and the results demonstrated that single NMN doses are safe and successfully metabolized in healthy participants without causing any significant side effects (29). In addition, clinical studies of NR’s safety and bioavailability have been conducted as well. Martens et al performed a randomized, double-blind, placebo-controlled clinical trial of NR supplementation (500 mg, twice/day) for six weeks (30). Their study demonstrated that NR is well tolerated and effectively stimulates NAD⁺ metabolism in healthy subjects (30). Recently, Conze and colleagues conducted an 8-week randomized, double-blind, placebo-controlled clinical trial to study dose-dependency of NR oral availability and safety in overweight, but otherwise healthy human subjects (31). They found that NR administration at 100, 300, and 1000 mg dose-dependently increased blood NAD⁺ and other NAD⁺ metabolites without significant differences in adverse events between the NR and placebo-treated groups or between groups at different NR doses (31). The good NR safety and bioavailability at three single doses (100, 300, and 1000 mg /day) are reinforced by another clinical study conducted with 12 healthy human subjects (16).

   Following safety and bioavailability studies in healthy human subjects, many clinical studies on the efficacies of NMN and NR in various aging-related diseases have been or are being conducted as well. To date, two clinical trials of NMN in hypertension are ongoing, and one is currently being conduct ed in the Integrative Physiology of Aging Laboratory in Colorado, United States (NCT03821623) and the other is performed at the First Affiliated Hospital of Sun Yat-sen University in China (NCT04903210, Table 1). No outcomes of these two studies have been released. About ten clinical trials of NR have also been initiated to treat various cardiovascular diseases including atherosclerosis, heart failure, and hypertension (Table 1), but no study results have been reported yet.

   The use of NMN and NR in treating neurodegenerative disorders has still yet to be studied extensively, as only a couple of clinical trials have been done on NR and none yet have been reported on NMN. Studies investigating the effects of supplementation are beginning to emerge, however (43-44, Table 1).

   The efficacy of NMN and NR in treating diabetes has not been studied to a great extent. So far, only a 10-week, randomized, placebo-controlled, double-blind clinical trial was conducted in postmenopausal women with prediabetes, who were overweight or obese, and the results showed that NMN supplementation (250 mg/day) increased their muscle insulin sensitivity, insulin signaling, and remodeling (45). These positive effects have opened the door to the possibility of NMN as a viable treatment for diabetes (45).

	CONCLUSION

   A decline in NAD⁺ levels is associated with numerous aging-related diseases including cardiovascular diseases, neurodegenerative disorders, and diabetes. Cumulative preclinical studies strongly evidence the beneficial effects of NAD⁺ precursors, NMN and NR supplements, in the amelioration of the conditions of aging-related diseases. Nevertheless, the mechanistic details of how extracellular NAD precursors interact with cells to exert their effects remains to be discovered. Recently, a number of clinical trials have been conducted, with results showing that NMN and NR are safe and bioavailable to humans. Currently, several clinical trials are underway to investigate whether NMN and NR supplementation can effectively treat aging-related disease such as cardiovascular diseases, neurodegenerative disorders, and diabetes. The next few years will witness whether the promising results observed in preclinical studies can be successfully translated to human clinical trials.

	ACKNOWLEDGEMENTS

   I would like to thank my mentor Dr. Jay Hao for his guidance and valuable feedback.

	CONFLICT OF INTERESTS

   The authors declare that no conflicting interests exist.

	ABBREVIATIONS

NR	Nicotinamide Riboside
NMN	Nicotinamide Mononucleotide
NAD+	Nicotinamide Adenine Dinucleotide
T2D	Type 2 Diabetes
PD	Parkinson’s Disease
AD	Alzheimer’s Disease

	REFERENCES

1. Okabe K, Yaku K, Tobe K, Nakagawa T. Implications of altered NAD metabolism in metabolic disorders. J Biomed Sci. 2019 May 11; 26.
2. Canto C, Menzies KJ, Auwerx J. NAD(+) Metabolism and the Control of Energy Homeostasis: A Balancing Act between Mitochondria and the Nucleus. Cell Metabolism. 2015 Jul 7; 22 (1): 31-53.
3. Yaku K, Okabe K, Nakagawa T. NAD metabolism: Implications in aging and longevity. Ageing Res Rev. 2018 Nov; 47: 1-17.
4. Mouchiroud L, Houtkooper RH, Moullan N, Katsyuba E, et al. The NAD(+)/Sirtuin Pathway Modulates Longevity through Activation of Mitochondrial UPR and FOXO Signaling. Cell. 2013 Jul 18; 154 (2): 430-441.
5. Braidy N, Guillemin GJ, Mansour H, Chan-Ling T, et al. Age related changes in NAD+ metabolism oxidative stress and Sirt1 activity in wistar rats. PLoS One. 2011 Apr 26; 6 (4): e19194.
6. Massudi H, Grant R, Braidy N, Guest J, et al. Age-associated changes in oxidative stress and NAD+ metabolism in human tissue. PLoS One. 2012; 7 (7): e42357.
7. Fang EF, Lautrup S, Hou Y, Demarest TG, et al. NAD(+) in Aging: Molecular Mechanisms and Translational Implications. Trends Mol Med. 2017 Oct; 23 (10): 899-916.
8. Katsyuba E, Auwerx J. Modulating NAD(+) metabolism, from bench to bedside. EMBO J. 2017 Sep 15; 36 (18): 2670-2683.
9. Rajman L, Chwalek K, Sinclair DA. Therapeutic Potential of NAD-Boosting Molecules: The In Vivo Evidence. Cell Metab. 2018 Mar 6; 27 (3): 529-547.
10. Hwang ES, Song SB. Possible Adverse Effects of High-Dose Nicotinamide: Mechanisms and Safety Assessment. Biomolecules. 2020 Apr 29; 10 (5).
11. Li D, Luo N, Ma Q, Li SZ, et al. Excessive nicotinic acid increases methyl consumption and hydrogen peroxide generation in rats. Pharm Biol. 2013 Jan; 51 (1): 8-12.
12. Trammell SAJ, Yu LP, Redpath P, Migaud ME, et al. Nicotinamide Riboside Is a Major NAD(+) Precursor Vitamin in Cow Milk. J Nutr. 2016 May; 146 (5): 957-963.
13. Magni G, Amici A, Emanuelli M, Raffaelli N, et al. Enzymology of NAD+ synthesis. Adv Enzymol Relat Areas Mol Biol. 1999; 73: 135-82.
14. Garavaglia S, Bruzzone S, Cassani C, Canella L, et al. The high-resolution crystal structure of periplasmic Haemophilus influenzae NAD nucleotidase reveals a novel enzymatic function of human CD73 related to NAD metabolism. Biochem J. 2012 Jan 1; 441 (1): 131-141.
15. Poddar SK, Sifat AE, Haque S, Nahid NA, et al. Nicotinamide Mononucleotide: Exploration of Diverse Therapeutic Applications of a Potential Molecule. Biomolecules. 2019 Jan 21; 9 (1).
16. Trammell SAJ, Schmidt MS, Weidemann BJ, Redpath P, et al. Nicotinamide riboside is uniquely and orally bioavailable in mice and humans. Nat Commun. 2016 Oct 10; 7.
17. https://www.who.int/health-topics/cardiovascular-diseases#tab=tab_1.
18. Yamamoto T, Byun J, Zhai P, Ikeda Y, et al. Nicotinamide mononucleotide, an intermediate of NAD+ synthesis, protects the heart from ischemia and reperfusion. PLoS One. 2014; 9 (6): e98972.
19. Nie H, Zhang Y, Yu H, Xiao H, et al. Oral delivery of carrier-free dual-drug nanocrystal self-assembled microspheres improved NAD(+) bioavailability and attenuated cardiac ischemia/reperfusion injury in mice. Drug Deliv. 2021 Dec; 28 (1): 433-444.
20. Hosseini L, Vafaee MS, Badalzadeh R. Melatonin and Nicotinamide Mononucleotide Attenuate Myocardial Ischemia/Reperfusion Injury via Modulation of Mitochondrial Function and Hemodynamic Parameters in Aged Rats. J Cardiovasc Pharmacol Ther. 2020 May; 25 (3): 240-250.
21. Zhang RL, Shen YY, Zhou L, Sangwung P, et al. Short-term administration of Nicotinamide Mononucleotide preserves cardiac mitochondrial homeostasis and prevents heart failure. J Mol Cell Cardiol. 2017 Nov; 112: 64-73.
22. Nicolas Diguet, Samuel A.J. Trammell, Cynthia Tannous, Robin Deloux, et al. Nicotinamide Riboside Preserves Cardiac Function in a Mouse Model of Dilated Cardiomyopathy. Circulation. 2018; 137: 2256–2273.
23. Lauritzen KH, Olsen MB, Ahmed MS, Yang K, et al. Instability in NAD(+) metabolism leads to impaired cardiac mitochondrial function and communication. Elife. 2021 Aug 3; 10.
24. Collaborators GBDDF. Estimation of the global prevalence of dementia in 2019 and forecasted prevalence in 2050: an analysis for the Global Burden of Disease Study 2019. Lancet Public Health. 2022 Feb; 7 (2): e105-e125.
25. Breijyeh Z, Karaman R. Comprehensive Review on Alzheimer's Disease: Causes and Treatment. Molecules. 2020 Dec 8; 25 (24).
26. Yoshino J, Baur JA, Imai SI. NAD(+) Intermediates: The Biology and Therapeutic Potential of NMN and NR. Cell Metab. 2018 Mar 6; 27 (3): 513-528.
27. Mills KF, Yoshida S, Stein LR, Grozio A, et al. Long-Term Administration of Nicotinamide Mononucleotide Mitigates Age-Associated Physiological Decline in Mice. Cell Metab. 2016 Dec 13; 24 (6): 795-806.
28. Trammell SA, Weidemann BJ, Chadda A, Yorek MS, et al. Nicotinamide Riboside Opposes Type 2 Diabetes and Neuropathy in Mice. Sci Rep. 2016 May 27; 6: 26933.
29. Irie J, Inagaki E, Fujita M, Nakaya H, et al. Effect of oral administration of nicotinamide mononucleotide on clinical parameters and nicotinamide metabolite levels in healthy Japanese men. Endocr J. 2020 Feb 28; 67 (2): 153-160.
30. Martens CR, Denman BA, Mazzo MR, Armstrong ML, et al. Chronic nicotinamide riboside supplementation is well-tolerated and elevates NAD(+) in healthy middle-aged and older adults. Nat Commun. 2018 Mar 29; 9.
31. Conze D, Brenner C, Kruger CL. Safety and Metabolism of Long-term Administration of NIAGEN (Nicotinamide Riboside Chloride) in a Randomized, Double-Blind, Placebo-controlled Clinical Trial of Healthy Overweight Adults. Sci Rep-Uk. 2019 Jul 5; 9.
