¹ Department of Chemistry, University of Mysore, Manasagangotri, Mysore, India;

² Department of Geology, University of Mysore, Manasagangotri, Mysore, India

Corresponding Author: Ebraheem Abdu Musad, Department of Chemistry, University of Mysore, Manasagangotri, Mysore, India. E-mail: alhashmi.ibrahim@yahoo.com.

	ABSTRACT
	INTRODUCTION
	RESULTS AND DISCUSSION
	CONCLUSIONS
	REFERENCES

	ABSTRACT

The new 3,5-(substituted) pyrazoles and isoxazoles were prepared by reaction of (N’¹E, N’³E)- N’¹, N’³-bis (3,4,5-substitutedbenzylidene)malonohydrazide with hydrazine hydrate and hydroxylamine hydrochloride respectively under solvothermal conditions involving an ecofriendly method without any environmental pollution, the yield are in the range of 75-96%. The structure of the new compounds were established using elemental analysis, IR, ¹H NMR, ¹³C NMR.

	INTRODUCTION

   Synthesis of pyrazole and isoxazole derivatives has been a subject of consistent interest because of the wide applications of such heterocycles in pharmaceutical as well as agrochemical industry. Numerous compounds containing pyrazole and isoxazole moieties have been shown to exhibit antihyperglycemic, analgesic, anti-inflammatory, antipyretic antibacterial, antiviral, antitumor, antifungal and antidepressant activities (1-13). They are also useful intermediate for many industrial products (14, 15). A lot of synthetic methods for pyrazoles and isoxazoles have been developed. However these methods are usually carried out in organic solvents and many of them reactions require long reaction times, high temperatures, or inconvenient reaction condition for their execution and are often accompanied by tedious chromatographic techniques for purification of the desired products. Recently Rai et al have developed a simple method for the organic synthesis in the presence of asalen metal catalyst. The chemistry of solvothermal reactions involves two major factors namely, high temperature and pressure. “Solvothermal reactions can be defined as reaction in closed system, in the presence of solvent at a temperature higher than its boiling point. Consequently these reactions can be developed in supercritical or in sub critical conditions” (16). Some of the reactions, which proceed at slow rates under normal pressure, can be enhanced by increasing the pressure. This can be achieved by heating the reaction mixture under sealed condition. The development of solvothermal reaction is of interest because they offer the possibility of environmentally benign reaction conditions by reducing the burden of organic solvent disposal. Solvothermal process involves the heterogeneous chemical reaction, which occur at solid-liquid or solid-liquid-gas interfaces under high temperature and high pressure. Rai and Linganna successively used thiourea as thionating agent for (i) the conversion of 1,3,4-oxadiazole to1,3,4-thiadiazole under solvothermal condition (17) by heating in a sealed tube at 100°C. (ii) the conversion of esters to thioesters under solvothermal condition using More’s autoclave (18). Besides, Rai et al (19) successfully converted aldehyde semicarbazones to bishydrazones by thermolysis under pressure using ethanol as solvent in a sealed tube. These facts prompted us to apply this technology for the synthesis of 3,5-bis(substituted)pyrazoles and isoxazoles based on cyclocondensation of (N’¹E, N’³E)- N’¹, N’³-bis (3,4,5-substitutedbenzylidene)malonohydrazide with hydrazine hydrate and hydroxylamine hydrochloride via solvothermal mode (Figure 1).

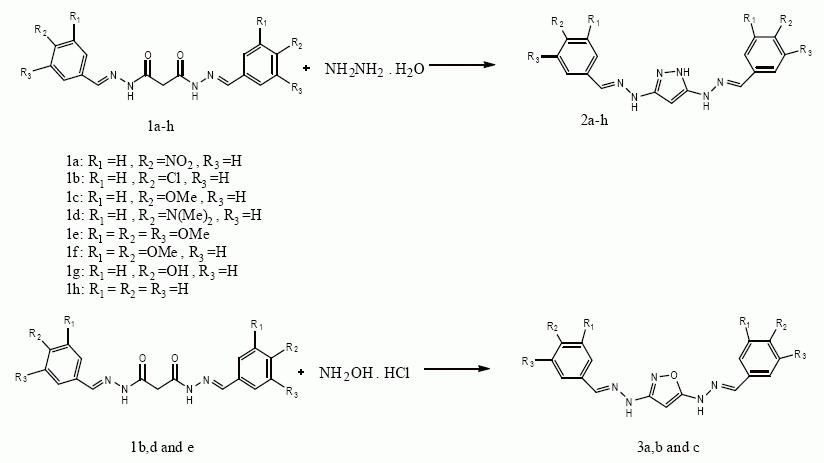

View larger version : [in a new window] Figure 1

	RESULTS AND DISCUSSION

   Synthesis of malonyldihydrazide was prepared by reacting the diethylmalonate (1mole) with hydrazine hydrate (2mole) (Figure 2). The desired starting materials (1a-h) were prepared in high yield by reacting ethanol solution of dihydrazide (1mole) with different benzaldehyde derivatives (2mole). The mixture was refluxed for 1hour and filtered, washed with ethanol and dried over desiccator (Figure 2).

   Syntheses of pyrazoles (2a-h) were undertaken first. Thus, when (N’¹E, N’³E)- N’¹, N’³-bis (3,4,5-substitutedbenzylidene)malonohydrazides (1a-h) were reacted with hydrazine hydrate in the absence of solvent under solvothermal condition using More’s autoclave at 100°C for 1hour, Products (2a-h) were obtained in good to excellent yield. In the case of reaction between 1a and hydrazine hydrate the yield is relatively low, this is ascribed to lower reaction activity of compound 1a due to strong electron-withdrawing effect of the nitro groups. Similarly treatment of (N’¹E, N’³E)- N’¹, N’³-bis (3, 4, 5-substitutedbenzlidene) malonohydazides (1b,d and e) with hydroxylamine hydrochloride under solvothermal condition using More’s autoclave at 150°C for 3hours afforded compounds (3a-c) in good yield. The structures of isolated products were established with the help of spectral and analytical data.

View larger version : [in a new window] Figure 2

	CONCLUSIONS

   We report the reactions of (N'¹E, N’³E) - N'¹, N'³-bis (3,4,5-substitutedbenzlidene) malononhydrazides with hydrazine hydrate and hydroxylamine hydrochloride under solvothermal conditions, a variety of pyrazole and isoxazole derivatives have been obtained in high yields.

   Experimental

   All reagents were purchased from commercial sources. ¹H NMR (300 MHz) and ¹³C NMR (100 MHz) spectra were recorded on a Bruker av300 spectrometer in CDCl₃ or DMSO-d₆ and TMSvis used as internal reference. IR spectra (KBr) were recorded on a FTIR spectrophotometer in the range of 400-4000 cm^-1. Elemental analyses were carried out on an Elementor vairo-EL instrument. Melting points are uncorrected. The starting materials (1a-h) were prepared according to the method cited in literature (20).

   Synthesis of 3, 5-bis(substituted) pyrazoles (2a-h) - General procedure

   A mixture of (1a, 0.01mol) and excess of hydrazine hydrate were taken in autoclave reaction container (Teflon liner). The lid was placed and was lowered into the autoclave, the plates were kept over it and the autoclave was closed and tightened. It was kept in the oven at100°C for 1hour. The products after cooling, were extracted into ethylacetate (20ml), washed thoroughly with water. The organic layer was dried over Na₂SO₄, solvent was evaporated and the product obtained as:

   2a: Solid 71% mp 98-100°C. Anal. Calc. for C₁₇H₁₄N 8O₄: C,51.78, H, 3.58, N, 28.42. Found: C, 51.46, H, 3.61, N, 28.08%.¹H NMR (CDCl₃); δ 4.10(br, ¹H, NH), 6.00 (s, 1H, C4), 7.70-8.30 (dd, 4H, Ar), 8.50 (s, 1H, -N=CH), 12.20 (br, 1H, NH). ¹³C NMR (100 MHz DMSO-d₆): δ 77.80, 124.02, 125.20, 134.04, 143.40, 145.52, 151.56, 159.66. IR (KBr): ν(cm^-1) 3426, 3291, 3073, 1600, 1512, 1336.

   2b: Solid 81% mp 168-171°C. Anal. Calc. for C₁₇H₁₄C_l2N₆: C, 54.71, H, 3.78, N, 22.52. Found: C, 53.92, H, 3.63, N, 23.01%.¹H NMR (CDCl₃); δ 4.10 (br, 1H, NH), 7.30 (s, 1H, C4), 7.70-7.80 (dd, 4H, Ar), 8.70 (s, 1H, -N=CH), 11.80 (s, 1H, NH). ¹³C NMR (100 MHz DMSO-d₆): δ 76.20, 123.58, 127.58, 131.34, 139.46, 146.79, 147.47. IR (KBr): ν(cm^-1) 3113, 3050, 1589, 1486.

   2c: Solid 91% mp 138-141°C. Anal. Calc. for C₁₉H₂₀N₆O₂: C,62.62, H, 5.53, N, 23.06. Found: C, 62.44, H, 5.62, N, 22.80%.¹H NMR (CDCl₃); δ 3.80(s,3H, -OCH₃), 4.20 (br, 1H, NH),v6.20 (s, 1H, C4), 6.90-7.70 (dd, 4H, Ar), 8.60 (s, 1H, -N=CH), 12.20 (br, 1H, NH). IR (KBr): ν(cm^-1) 3369, 3166, 3077, 2950, 2841,v1581, 1422.

   2d: Solid 94% mp 145°C decomposes. Anal. Calc. for C₂₁H₂₆N₈: C, 64.59, H, 6.71, N, 28.70. Found: C, 64.42, H, 6.82, N, 28.50%.¹H NMR (DMSO-d₆); δ 2.99 (s, 6H, -N(CH₃)₂), 6.20 (s,1H, C4), 6.70-7.40 (dd, 4H, Ar), 8.00 (s, 1H, -N=CH), 10.70 (s, 1H, NH). ¹³C NMR (100 MHz CDCl₃): δ 40.19, 111.73, 123.24, 129.87 147.43, 152.10, 160.82. IR (KBr): ν(cm^-1) 3192, 3134, 3077, 2911, 2811, 1615, 1527, 1437.

   2e: Solid 89% mp 114-117°C. Anal. Calc. for C₂₃H₂₈N₆O₆: C, 57.02, H, 5.82, N, 17.35. Found: C, 56.91, H, 5.85, N, 16.82%.¹H NMR (DMSO-d₆); δ 3.80 (s, 9H, -OCH₃), 6.60 (s, 1H, C4), 6.85 (s, 2H, Ar), 7.60 (s, 1H, -N=CH), 11.20 (s, 1H, NH). ¹³C NMR (100 MHz DMSO-d₆): δ 55.90, 59.97, 78.20, 103.58, 128.24, 138.38, 144.42, 146.38, 153.40. IR (KBr): ν(cm^-1) 3369, 3166, 3077, 2950, 2841, 1581, 1415, 1341.

   2f: Solid 87% mp 160-164°C. Anal. Calc. for C₂₁H₂₄N₆O₄: C, 59.42, H, 5.70, N, 19.80. Found: C, 59.02, H, 5.85, N, 19.52%.¹H NMR (CDCl₃); δ 3.80(s, 6H, -OCH₃), 4.30(br, 1H, NH) 6.20 (s, 1H, C4), 6.80-7.30 (dd, 2H, Ar), 7.60(s, 1H, Ar) 8.60 (s, 1H, -N=CH), 12.20 (br, 1H, NH). IR (KBr): ν(cm^-1) 3177, 3073, 2935, 1595, 1457, 1266.

   2g: Solid 83% mp 118-121°C. Anal. Calc. for C₁₇H₁₆N₆O₂: C, 60.71, H, 4.79, N, 24.99. Found: C, 60.52, H, 4.83, N, 24.55%.¹H NMR (DMSO-d₆); δ 3.60 (br, 1H, NH), 6.20 (s, 1H, C4), 6.70-7.30 (dd, 4H, Ar), 7.70 (s, 1H, -N=CH), 9.70 (br, 1H, OH), 11.30 (br, 1H, NH).¹³C NMR (100 MHz DMSO-d₆): δ 77.90, 115.32, 127.16, 130.08, 139.48, 157.18, 160.36. IR (KBr): ν(cm^-1) 3324, 1604, 1455, 1259.

   2h: Solid 92% mp 64-67°C. Anal. Calc. for C₁₇H₁₆N₆: C, 67.09, H, 5.30, N, 27.61. Found: C, 66.90, H, 5.41, N, 27.34%.¹H NMR (DMSO-d₆); δ 4.30(br, 1H, NH), 6.30 (s, 1H, C4), 7.40-7.90 (m, 5H, Ar), 8.75 (s, 1H, -N=CH), 11.30 (br, 1H, NH). ¹³C NMR (100 MHz DMSO-d₆): δ 77.44, 125.02, 128.87, 131.32, 133.76, 161.46. IR (KBr): ν(cm^-1) 3166, 3050, 1619, 1483, 1304.

   Synthesis of 3, 5-bis(substituted) isoxazoles (3a-c) - General procedure

   A mixture of (1a, 0.01mol) and an equimoler amount of hydroxylamine hydrochloride were taken in autoclave reaction container (Teflon liner). The lid was placed and was lowered into the autoclave, the plates were kept over it and the autoclave was closed and tightened. It was kept in the oven at150°C for 3hour. The products after cooling, were extracted into ethylacetate (20ml), washed thoroughly with water. The organic layer was dried over Na₂SO₄, solvent was evaporated and the product obtained as:

   3a: Solid 80% mp 112-113°C. Anal. Calc. for C₁₇H₁₃C_l2N₅O: C, 64.43, H, 6.44, N, 25.05. Found: C, 64.21, H, 6.53, N, 24.91%.¹H NMR (CDCl₃); δ 3.00 (s, 6H, -N(CH₃)₂), 6.70-7.70 (dd, 4H, Ar), 8.60 (s, 1H, -N=CH).¹³C NMR (100 MHz CDCl₃): δ 40.19, 98.60 111.73, 122.24, 129.87, 147.43, 150.23, 152.10, 160.82. IR (KBr): ν(cm^-1) 3254, 2921, 2817, 1612, 1531, 1450.

   3b: Solid 75% mp 78-80°C. Anal. Calc. for C₂₃H₂₇N₅O₇: C, 56.90, H, 5.61, N, 14.43. Found: C, 56.85, H, 5.75, N, 14.15%.¹H NMR (DMSO-d₆); δ 3.80 (s, 9H, -OCH3), 6.70 (s. 1H, C4), 6.90 (s, 2H, Ar), 8.00 (s, 1H, -N=CH).¹³C NMR (100 MHz DMSO-d₆): δ 55.90, 60.06, 103.58, 128.56, 138.53, 144.42, 147.84, 152.38, and 153.49. IR (KBr): ν(cm^-1) 3571, 3286, 2952, 1594, 1474.

   3c: Solid 77% mp 92-94°C. Anal. Calc. for C₁₇H₁₃C_l2N₅O: C, 54.56, H, 3.50, N, 18.71. Found: C, 54.43, H, 3.61, N, 18.60%.¹H NMR (CDCl₃); δ 4.10(br, 1H, NH), 6.80 (s, 1H, C4), 7.90-8.20 (dd, 4H, Ar), 8.70 (s, 1H, -N=CH), 8.90 (s, 1H, -N=CH). ¹³C NMR (100 MHz CDCl₃): δ 98.59, 123.96, 127.30, 131.46, 146.79, 147.47, 155.50. IR (KBr): υ(cm^-1) 3318, 3108, 2947, 1601, 1335.

	REFERENCES

1. (a) Elguero J. In Comprehensive Heterocyclic chemistry II; Katritzky, A., Rees, C.W., Scriven, E.F.V., Eds.; Pergamon Press: Oxford, 1996; vol.3, p.1.; (b) Kost, A.N.; I. I. In Advances in Heterocyclic Chemistry, Katritzky, A.R.; Buoulton, A.J.; Eds., Academic Press: New York, 1966; 6:347.
2. Sakya SM, Rast B. Efficient synthesis of 5-alkyl amino and thioether substituted pyrazoles. Tetrahedron Lett., 2003; 44: 7629.
3. Sugiura S, Ohno S, Ohtani O, Izumi K, et al. Synthesis and Antinflammatory and Hypnotic Activity of 5-Alkoxy-3-(N-Substituted Carbamoyl)-1-phenylpyrazoles.  J. Med. Chem. 1977; 20: 80.
4. Goda FE, Maroul AR, El-Bendory ER. Synthesis and antimicrobial evaluation of new isoxazole and pyrazole derivatives. Saudi. Pharma., J. 2003; 3: 11.
5. Lee KY, Kim JM, Kim JN. Regioselective synthesis of 1,3,4,5-tetrasubstituted pyrazoles from Baylis-Hillman adducts. Tetrahedron Lett., 2003; 44: 6737.
6. Jungheim L. Bicyclic pyrazolidinone antibacterial agents. Synthesis of side chain analogues of carbapenems. PS-5 and thienamycin. Tetrahedron Lett. 1989; 30:1889.
7. Peruncheralathan S, Yadav AK, Ila H, Jungappa HJ. Highly Regioselective Synthesis of 1-Aryl-3(or 5)-alkyl/aryl-5 (or3)-(N-cycloamino)pyrazoles. Org.Chem. 2005; 70; 9644.
8. Umesha KB, Lokanatha RKM, Kumar KA. A new approach for the synthesis of pyrazols via 1, 3-dipolar cycloaddition of nitrile imines to acetyl acetone.  J. Chem. 2002; 418: 1405.
9. Xue C, Roderick J, Mousa S, Olson RE, DeGrado WF. Synthesis and antiplatelet effects of an isoxazole series of glycoprotein IIb/IIIa antagonists. Biorg. Med. Chem, Lett. 1998; 8: 3499.
10. Kang YK, Shin KJ, Yoo KH, Seo KJ, et al. Synthesis and antibacterial activity of new carbapenems containing isoxazole moiety. Biorg. Med. Chem. Lett. 2000; 10: 95.
11. Petkevich SK, Potkin VI, Kaberdin RV. Synthesis of Substituted Isoxazples and Pyrazoles Based on 1-Aryl-3, 4, 4-trichloro-3-buten-1-ones. Russi. J. Or. Chem. 2004; 40: 1146.
12. Maczynski M, Zimeck M, Ryng S. A new class of isoxazole derivatives: The M 1-9 series of compounds eith immunotropic activity.  acta. pol-pharm. 2008; 65:241.
13. Mauro FAA, Vivekananda RK, Donato D, Piero SF, Tomas T. Three multicomponent reactions of 3, 5-dimethyl-4-nitroisoxazoles. Tetrahedron. 2007; 63: 9741.
14. Swati O, Archita B, Ganpat LT. Synthetic and pharmacological studies on some 1-isonicotinoyl-3-methyl-4-(4-substituted phenyl)-3a,4-dihydro pyrazolo [3,4a-c]pyrazoles and their ethoxyphthalimide derivatives. Arkivoc. 2008; 112.
15. Anjani S, Yogesh Rasayan P. An efficient synthesis of some new fluorine containing acetyl pyrazoline and isoxazole derivatives and their antibacterial activity. RASAYAN., J. Chem. 2009; 2: 23.
16. Jailakshmi K, Rai KML, Byrappa K. Synthesis of benzhydrol derivatives by metal imidozalen catalysed electrophilic addition of aromatic aldehyde to hydrocarbons under solvothermal condition. J. Mater. Sci. 2008; 43: 2254.
17. Linganna N, Rai KML. Transformation of 1, 3, 4-Oxadiazoles to 1, 3, 4-Thiadiazoles Using Thiourea. Synth Commun. 1998; 28: 4611.
18. Aparna E, Rai KML, Byrappa K, Sureshbabu M, et al. Synthesis of thioesters and thioamides under solvothermal condition using thiourea as thionating agent. J. Mater.Sci. 2006; 41: 1391.
19. Linganna N, Rai KML, Shashikanth S. Indi. J. Chem.Sect. B. 1999; 38B: 1126.
20. Rajavel R, Senthil MS, C. Anitha C. Synthesis, physical characterization and biological activity of some Schiff base complexes. E-J.Chem. 2008; 5: 620.
