Department of Analytical Chemistry, Faculty of Pharmacy, University of Mansoura, Mansoura, 35516, Egypt

Corresponding Author: A.M. El-Brashy, Department of Analytical Chemistry, Faculty of Pharmacy, University of Mansoura, Mansoura, 35516, Egypt. Tel: +20105057988; Fax: +2050-2247496; E-mail: amel¬brash@yahoo.com.

	ABSTRACT
	INTRODUCTION
	EXPERIMENTAL
	RESULTS AND DISCUSSION
	CONCLUSION
	REFERENCES

	ABSTRACT

  Two simple and sensitive kinetic methods were developed for the determination of ribavirin in bulk and in its pharmaceutical preparations using alkaline potassium permanganate as an oxidizing agent. the meth¬ods are based upon a kinetic investigation of the oxidation reaction of the drug at room temperature for fixed times of 20 and 30 minutes. In the first method, the absorbance of the colored manganate ion was measured at 610 nm, while in second method the reduction in the absorbance of permanganate was measured at 525 nm. The absorbance concentration plots were linear over the range of 3-15 μg/ml with detection limits of 0.028 μg/ml in the first method and 0.229 μg/ml for the second method. The proposed methods were applied successfully for the determination of the drug in its pharmaceutical formulations, the percentage recoveries were 100.15 ± 1.34, 100.06 ± 0.86 in the first method, and 99.60 ± 0.54, 100.43 ± 0.82 in the second method. The results obtained were compared statistically with those obtained by the official method and showed no significant differences regarding accuracy and precision.

KEY WORDS:    spectrophotometry; ribavirin; potassium permanganate; dosage forms

	INTRODUCTION

  Ribavirin (1-beta-D-ribofuranosyl-1H-1, 2, 4 thiazole-3-carboxamine) (Fig. 1) is a purine nucleoside analog with a modified base and D- ribose sugar (1). It inhibits the replication of a wide range of RNA and DNA viruses, including orthomyxo-, paramyxo-, arena-, bunya-, herpes-, adeno-, pox- and retro viruses. In vitro inhibitory con¬centration range is 3-10 μg/ml for influenza, parainfluenza and respiratory syncytical (RSV) viruses (2). Similar con¬centrations may reversibly inhibit macromolecular syn¬thesis and proliferation of uninfected cells and suppress lymphocytes responses in vitro. The reported methods for the determination of the drug include fluorimetry (3) spec¬trophotometry (4-6) and high performance liquid chromatography (HPLC) (7-10).



View larger version : [in a new window] Figure 1. Structure of Ribavirin.

  The catalytic kinetic spectrophotometric method is one of the most attractive approaches for the ultratrace deter¬mination of certain chemicals and has many advantages: ? Selectivity due to the measurement of the evolution of the absorbance with time of reaction instead of the mea¬sure of concrete absorbance value; ? Possibility of no interference of the colored and of tur¬bidity background of the sample; ? Possibility of no interference of other active compounds present in the commercial products, if they are resisting the chemical reaction conditions established for the pro¬posed kinetic method (11).
  The aim of the present work was to study the reaction between ribavirin and potassium permanganate in alka¬line medium kinetically by two different methods in an attempt to evaluate the drug in its dosage forms. The pro¬posed spectrophotometric methods were simple and did not need sophisticated instruments or special skills, sensi¬tive, rapid and readily adaptable to both the bulk drug and dosage forms.

	EXPERIMENTAL

Apparatus

  UV-1601, Shimadzu recording spectrophotometer (P/N 206-67001) equipped with kinetic accessory provided with temperature controlled cell (TCC –240A) thermoelectrical temperature. Recording range, 0–1; wave-length, 610 and 525 nm; factor 1; number of cell, 1; reaction times, 20 and 30 min and cycle time, 0.1 min.

Materials and Reagents

  Ribavirin was kindly obtained from T3A (Cairo, Egypt). The purity of the drug was determined and confirmed by applying the official method (12). Pharmaceutical preparations containing the drug were purchased from different commercial sources in the lo¬cal markets. Ribavirin 200 capsules: labeled to contain 200 mg ribavirin/capsule (lot No. 020303; T3A, Cairo, Egypt); Viracure capsules: labeled to contain 200 mg ribavirin/capsule (lot No. B31120; October Pharma Co, Cairo, Egypt). ? Reagents: All the reagents used were of analytical grade and water was always double distilled. Aqueous solu¬tions of 7.59 × 10-2, 7.59 × 10-3 M potassium permanga¬nate (Merck, Germany) and 2 M NaOH (BDH, UK) were prepared. ? Stock solutions.
  The stock solution of the studied drug was prepared by dissolving 100 mg of ribavirin in 100 ml distilled water and solicited for few minutes. Working standard solutions were prepared by dilution of the stock solution with the same solvent. The solutions were stable for one week if kept in the refrigerator.

General procedures

  Construction of the calibration graph for the first method. An aliquot solutions of ribavirin containing 30-150 μg was transferred into a 10 ml volumetric flask, 2.5 ml of 2 M NaOH was added followed by 0.7 ml of 7.59 × 10-2 M KMnO4, the mixture was shaken well and completed to the volume with distilled water. The absorbance was scanned during 20 min. at room temperature at 610 nm against a similar blank prepared simultaneously.
  Construction of the calibration graph for the second method. An aliquot solution of ribavirin containing 30-150 μg was transferred into a 10 ml volumetric flask, 3ml of 2 M NaOH was added followed by 1 ml of 7.59 × 10-3 M KMnO4, the mixture was shaken well and completed to the volume with distilled water. The reduction in absorbance was scanned during 30 min. at room temperature at 610 nm against a similar blank prepared simultaneously.
  Procedures for determination of ribavirin in its dosage forms. An accurately weighed quantity of the mixed contents of 10 capsules equivalent to
  50 mg of the drug was transferred into a 100 ml volumetric flask. About 70 ml distilled water were added and the mixture was sonicated for 15 min, filtered and then diluted to volume with distilled water. An aliquot of the filtrate was transferred into a 10 ml volumetric flask and either above procedure was adopted. The nominal content of the capsules were calculated by referring to the pre¬pared calibration graphs or the corresponding regression equations.

RESULTS AND DISCUSSION

  The reaction between ribavirin and KMnO4 in alkaline medium yields a green color due to the production of man¬ganate ions, which absorb at 610 nm. As the intensity of the color increases with time, this was used as a useful method for the determination of ribavirin in bulk as well as in dosage forms (first method).
  At the same time owing to the consumption of KMnO4 in the reaction the absorbance of KMnO4 peaking at 525 nm decreases with time. This was also used as a useful method for the determination of ribavirin (second meth¬od).
  The various experimental parameters affecting the de¬velopment and stability of the reaction product in either method were optimized by changing each variable in turn while keeping all others constant.

Effect of KMnO4

  In the first method, the reaction rate and maximum absorbance increased with increasing KMnO4 concentration. It was found that 0.6 ml of 7.59 × 10-2 M KMnO4 was adequate for the maximum absorbance. Higher concentrations of KMnO4 yielded lower absorbance values probably due to decomposition of the product (Fig. 2).



View larger version : [in a new window] Figure 2. Effect of volume of potassium permanganate on the reaction product of 6.143 × 10-5 M ribavirin measured at room temperature after 20 min. (Method A).

  While in the second method, the reaction rate and maximum absorbance reduction increased with increas ing KMnO4 concentration. It was found that 1 ml of 7.59 ×10-3 M KMnO4 was adequate for the maximum absorbance reduction (Fig. 3).



View larger version : [in a new window] Figure 3. Effect of volume of sodium hydroxide on the reaction product of 6.143 × 10-5 M ribavirin measured at room tempera¬ture after 20 min. (Method A).

Effect of NaOH

  It was found that increasing the volume of 2 M NaOH would increase the absorbance of the reaction product up to 2.5 ml. (In the first method ) (Fig. 4).



View larger version : [in a new window] Figure 4. Effect of volume of potassium permanganate on the reaction product of 6.143 × 10-5 M ribavirin measured at room temperature after 30 min. (Method B).



View larger version : [in a new window] Figure 5. Effect of volume of sodium hydroxide on the reaction product of 6.143 × 10-5 M ribavirin measured at room tempera ture after 30 min. (Method B).

  The rate of the reaction was found to be dependent on ribavirin concentration. The rate was followed at room temperature with various concentrations in the range of 3–15 μg/ml keeping KMnO4 and NaOH concentrations constant.
  The reaction rate was found to obey the following equation: Rate = K` [drug] n (Eq. 1) where K` is the pseudo – order rate constant and n is the order of the reaction.
  The rate of the reaction in either method may be estimated by the variable time method measurement as ΔA/ Δt, where A is the absorbance and t is the time in seconds. Taking logarithms of rate and concentrations (Table 1), Eq.1 is transformed into Log (rate) = log ΔA /Δt = log K` + n log [drug] (Eq. 2)
  Log (rate) versus log [drug] gave the regression equa tion: Log rate = 0.2049 + 0.825 log C r= 0.9986 (in the first method) Hence K` = 1.603 S-1 and the reaction is first order (n = 0.825). Log rate = 0.3442 + 0.896 log C r= 0.9988 (in the second method) Hence K` = 2.209 S-1 and the reaction is first order (n = 0.896).

Evaluation of the kinetic methods

  The quantitation of the drug under the optimized ex¬perimental conditions outlined above would result in a pseudo – first order with respect to the drug concentration where KMnO4 concentration was at least 74 times of the initial concentration of the drug in the first method or 12 times of the initial concentration of the drug in the second method.
  However the rate will be directly proportional to drug concentration in a pseudo – first rate equation as follows: Rate = K` [drug] (Eq. 3) where K` is the pseudo order rate constant.
  Several experiments were then carried out to obtain drug concentration from the rate data according to (Eq. 3). Initial rate, rate constant, fixed concentration and fixed time methods (14, 15), were tried and the most suitable analytical method was selected taking into account the ap¬plicability, the sensitivity, the intercept and the correlation coefficient (r).

Rate - constant method

  Graphs of log absorbance versus time for ribavirin in the range of 1.229 × 10-5 – 6.143 × 10-5 M were plotted and all appeared to be rectilinear. Pseudo – first order rate con¬stant (K`) corresponding to different drug concentrations (C) were calculated from the slope multiplied by -2.303 and are presented in Table 2.
  Regression of (C) versus K` gave equations: K` = -6.028 × 10-4 + 4.187 C r = 0.897 (in the first method) K` = -6.877 × 10-4 + 2.683 C r = 0.585 (in the second method)

Fixed – concentration method

  Reaction rates were recorded for different concentra¬tions of the drug in the range of 2.457 × 10-5 – 4.914 × 10-5 M in the first method and 1.229 × 10-5 - 6.143 × 10-5 in the second method. Preselected values of the absorbance (0.3) in the first method and (1.1) in the second method were fixed and the time was measured in seconds. The recipro¬cal of times (1/t) versus the initial concentrations of drug (Table 3) were plotted and the following equations of the calibration graphs were obtained: 1/t = -8.363 × 10-3 + 386.350 C r = 0.9845 (in the first method) 1/t = -5.989 × 10-4 + 94.028 C r = 0.9814 (in the second method)

Fixed – time method

  Reaction rates were determined for different concen¬trations of the drug. At a preselected fixed time, which was accurately determined, the absorbance was measured. Calibration graphs of absorbance versus initial concentra¬tions of ribavirin were established at fixed times of 5, 10, 15, 20 min. in the first method and 5, 10, 15, 20, 25, 30 min. in the second method with the regression equations assembled in (Table 4).

  It is clear that the slope increased with time and the most acceptable values of the correlation coefficient (r) and the intercept were chosen as the most suitable time interval for measurement.

Calibration graphs

  After optimizing the reaction conditions, the fixed time was applied to the determination of the drug in pure form over the concentration range 3–15 μg/ml. Analysis of the data gave the following regression equations: A = 0.0101 + 0.0575 C r = 0.9999 (in the first method) A = 0.0163 + 0.0469 C r = 0.9999 (in the second method)
  The calibration graphs were shown in (Figs. 6, 7), the % recoveries of the drug compared with that obtained by the official method (12), were given in (Table 5).



View larger version : [in a new window] Figure 6. Kinetic spectrophotometric calibration curve for the reaction between ribavirin and alkaline potassium permanga¬nate. (Method A).



View larger version : [in a new window] Figure 7. Kinetic spectrophotometric calibration curve for the reaction between ribavirin and alkaline potassium permanganate. (Method B).

  Statistical analysis (16) of the results obtained by the proposed and reference method (13) using student’s t test and variance ratio revealed no significant difference between the performance of the methods regarding accuracy and precision.
  The proposed methods were successfully applied for determination of the studied drug in its dosage forms, as shown in (Table 6), compared with the result obtained by the reference method.

Mechanism of the reaction

  The stoichiometry of the reaction was studied adopting the limiting logarithmic method (17). The ratio of the re¬action between ribavirin and KMnO4 in alkaline medium was calculated by dividing the slope of KMnO4 curve over the slope of the drug curve (Fig 8a, 8b). It was found that the ratio was (1: 1) KMnO4 to drug. The proposed pathway of the reaction is given in Figure 9.

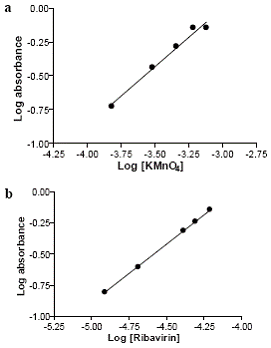

View larger version : [in a new window] Figure 8. Stoichiometry of the reaction between ribavirin and alkaline potassium permanganate adopting limiting logarithmic method.

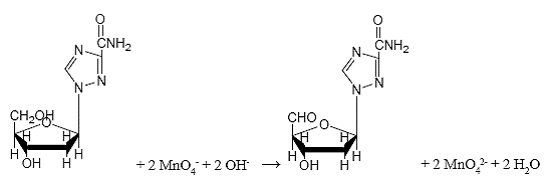

View larger version : [in a new window] Figure 9. The proposed pathway of the reaction.

	CONCLUSION

  The proposed methods were simple, accurate, precise, sensitive, rapid and low cost. Furthermore, the proposed methods do not require elaboration of procedures, which are usually associated with chromatographic methods. The proposed methods could be applied successfully for determination of the studied drug in pure form as well as in dosage form.

	REFERENCES

• 1. Budavari S. The Merck Index, An Encyclopaedia of Chemicals, Drugs and Biologicals . 12th ed. Merck & Co; NJ; 1996; 1409.

• 2. Reynolds LEF. Martindale, (The Extra Pharmacopoeia) 31st ed. Lon¬don. The Pharmaceutical Press; 1996; 626.

• 3. Darwish IA, Khedr AS, Askal HF, Mahmoud RM. Simple fluorimetric method for determination of certain antiviral drugs via their oxidation with cerium (IV). Farmaco. 2005; 60(6-7): 555.

• 4. Darwish IA, Khedr AS, Askal HF, Mahmoud RM. Application of inor¬ganic oxidants to the spectrophotometric determination of ribavirin in Bulk and Capsules. J. AOAC Int.2006; 89(2): 341.

• 5. Sharaf El-Din MK, El-Brashy AM, Sheribah ZA, El-GAmal RM. Spectrophotometric determination of acyclovir and ribavirin in their dosage forms. J. AOAC Int. 2006; 89.

• 6. Milovanovic GA, Caker MM, Vucic NB, Jokanovic M. Selective indi¬cator reaction for kinetic determination of traces of manganese (Π), ribavirin and tiazofurin. Mikrochim. Acta. 2000; 135(3-4):173.

• 7. Liu Y, Yan CR, Lim C, Yeh LT, et al. Sensitive and specific LC– MS/MS method for the simultaneous measurements of viramidine and ribavirin in human plasma. J. Chromatog. B. 2006; 832(1):17.

• 8. Yeh L, Nguyen M, Lourenco D, Lin C. A sensitive and specific method for the determination of total ribavirin in monkey liver by high-performance liquid chromatography with tandem mass spec¬trometry. J. Pharma. Biomed. Anal. 2005; 38(1): 34.

• 9. D ’Avolio A, Ibañez A, Sciandra M, Siccardi M, et al. Validation of liquid/liquid e×traction method coupled with HPLC-UV for measure¬ment of ribavirin plasma levels in HCV-positive patients. J. Chro¬matog. B.2006; 835(1-2):127.

• 10. Z. Shou W, Bu H, Addison T, Jiang X, et al. Development and valida¬tion of a liquid chromatography/tandem mass spectrometry (LC/MS/ MS) method for the determination of ribavirin in human plasma and serum. J. Pharma. Biomed. Anal. 2002; 29(1-2):83.

• 11. Espinosa-Mansilla A, Acedo-Valeenzulea MI, Salinas F, Canda F. Kinetic determination of ansamicins in pharmaceutical formulations and human urine. Manual and semiautomatic (stopped-flow) proce¬dures. Anal. Chim. Acta. 1998; 376(3): 365.

• 12. The United States Pharmacopoeia XXII. National Formulary XVII; USP Convention, Rockville, MD, 2000; 1644.

• 13. Weisberger A, Friess SL, Llewis ES. Techniques of Organic Chemis¬try, Ш, vol. 3, Interscience, New York; 1953.

• 14. Yatsimirskii KB. Kinetic Methods of Analysis. Oxford, Pergamon Press; 1996.

• 15. Laitinen HA, Harris WE, Chemical Analysis. 2nd ed. McGraw-Hill: New York; 1975.

• 16. Miller JC, Miller JN. Statistics for Analytical Chemistry. New York .John Wiley & Sons; 1984; 1-94.

• 17. Rose J. Advanced Physicochemical Experiments. London. Pitman and Sons; 1964; 67.
